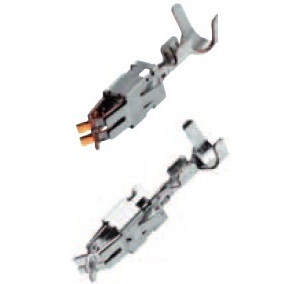

DELPHI ATS 2.8, ATS-ASL 2.8
| current range max 25A | ||||||
| Part number | Cable range [mm2] | Material | Plating | Version | Tang | |
| ATS 2.8 F | 15344659 | 0.35-0.5 | CuNiSi | Sn | sealed | 2 |
| ATS 2.8 F | 15344661 | 0.75-1.0 | CuNiSi | Sn | sealed | 2 |
| ATS 2.8 F | 13629765 | 1.5 | CuNiS | Sn | sealed | 2 |
| ATS 2.8 F | 15344660 | 1.5-2.5 | CuNiSi | Sn | sealed | 2 |
| ATS 2.8 F | 15493059 | 0.35-0.5 | CuNiSi | Sn HT | sealed | 2 |
| ATS 2.8 F | 15493063 | 0.75-1.0 | CuNiSi | Sn HT | sealed | 2 |
| ATS 2.8 F | 13629766 | 1.5 | CuNiS | Sn HT | sealed | 2 |
| ATS 2.8 F | 15493061 | 1.5-2.5 | CuNiSi | Sn HT | sealed | 2 |
| ATS 2.8 F | 15426998 | 0.35-0.5 | CuNiSi | Au | sealed | 2 |
| ATS 2.8 F | 15426999 | 0.75-1.0 | CuNiSi | Au | sealed | 2 |
| ATS 2.8 F | 13629767 | 1.5 | CuNiS | Au | sealed | 2 |
| ATS 2.8 F | 15427000 | 1.5-2.5 | CuNiSi | Au | sealed | 2 |
| ATS 2.8 F | 13679977 | 0.35-0.5 | CuNiS | Ag | sealed | 2 |
| ATS 2.8 F | 13679979 | 0.75-1.0 | CuNiS | Ag | sealed | 2 |
| ATS 2.8 F | 13679981 | 1.5-2.5 | CuNiS | Ag | sealed | 2 |
| ATS 2.8 ASL | 13601165 | 0.35-0.5 | CuNiSi | Sn | sealed | 2 |
| ATS 2.8 ASL | 13601166 | 0.75-1.0 | CuNiSi | Sn | sealed | 2 |
| ATS 2.8 ASL | 13601167 | 1.5-2.5 | CuNiSi | Sn | sealed | 2 |
| ATS 2.8 ASL | 13601171 | 0.35-0.5 | CuNiSi | Sn HT | sealed | 2 |
| ATS 2.8 ASL | 13601172 | 0.75-1.0 | CuNiSi | Sn HT | sealed | 2 |
| ATS 2.8 ASL | 13601173 | 1.5-2.5 | CuNiSi | Sn HT | sealed | 2 |
| ATS 2.8 ASL | 13601168 | 0.35-0.5 | CuNiSi | Au | sealed | 2 |
| ATS 2.8 ASL | 13601169 | 0.75-1.0 | CuNiSi | Au | sealed | 2 |
| ATS 2.8 ASL | 13601170 | 1.5-2.5 | CuNiSi | Au | sealed | 2 |
|

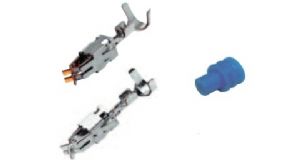

Cavity Ø 5.2 mm Selected Delphi sealing products for ATS 2.8 |
|||||
| Loose part | Cable diameter（mm） | Material | Color | %Oil | |
| Cable Seal | 15327860 | 1.2-2.0 | LSR | blue | 2 |
| Cable Seal | 15327863 | 2-2.7 | LSR | red-brown | 2 |
| Cable Seal | 15327859 | 2.7-2.9 | LSR | yellow | 2 |
| Cable Seal | 15324974 | 1.2-2.1 | LSR | blue | 2 |
| Cable Seal | 15324976 | 1.6-2.4 | LSR | white | 2 |
| Cable Seal | 10737671 | 1.5-2.3 | LSR | red | 2 |
| Cable Seal | 10737670 | 2.2-2.4 | LSR | blue | 2 |
| Cable Seal | 15324973 | 2-2.9 | LSR | red-brown | 2 |
| Plug | 15337197 | - | LSR | white | 2 |
| Plug | 10730124 | - | LSR | green | 2 |
