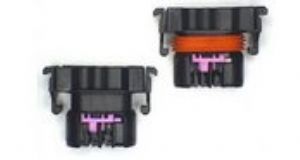

BOSCH Wiring Harness Connector 6-way
概述
Features
- Sealed / unsealed secondary locking possible
- Temperature range: -40...+85 °C, short burst +115 °C (2h)
- Degree of protection: IP 20, IP 54K
- Connection cross-sections: 0.35....0.75mm²
- Usable terminals: MQS 0.64 mm (Tyco)
- Raster unit/pin: 4mm/0.64mm
Technical Features
| Temperature range | -40...+85 °C, short burst 115 °C (2h) |
| Degree of protection | IP 20, 54K |
| Connection cross-sections | 0.35....0.75 mm² |
| Usable terminals | MQS 0.64 mm (Tyco) |
| Raster unit/pin | 4 mm/0,64 mm |
