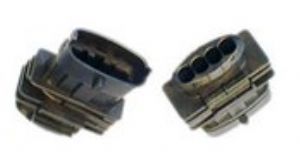

BOSCH Mating Connector - Kompakt
概述
Features
- Number of terminals variants 2...5
- Mating connector for compact connectors
- Tight version
- Four codings
- Flat blades 2,8 mm mountable
- Fastener for mounting on vehicle
Technical Features
| Vibration resistance | 20 g |
| Temperature range | -40…+150 °C (terminal gold-plated) |
| Degree of protection | IP 54K, 69K |
| Connection cross section | 0.35…1 mm² |
| Usable terminals | flat blades 2.8 mm mountable |
| Raster-measures | 5 mm |
