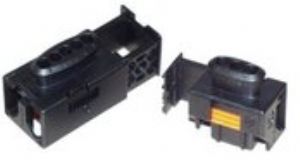

BOSCH Kompakt 2 / 2.1
概述
Features
- Number of terminals variants 3...5 (Compact 2) 3 (Compact 2.1)
- Locking slide
- Sealed plug connection
- Single wire seal
- Reduced space demand
Technical Features
| Vibration resistance |
|
| Temperature range | -40...+150 °C (terminal gold-plated) |
| Degree of protection | IP X4K, X9K |
| Connection cross-sections | 0.35...2.5 mm² |
| Usable terminals | JPT with single wire seal |
| Raster unit/pin | 5 mm/2.8 mm |
