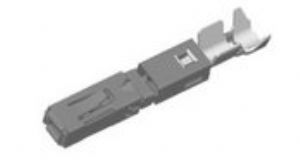

BOSCH BMK 1.5-D - Bosch micro-terminal
概述
Features
- stress-reducing decoupling mechanism
- high long-time temperature stability (up to 150 °C, Au-surface)
- secondary locking possible
- high vibration resistance
- suitable for use with silicone gel-seal
Accesories
- hand crimping tool: 1/1.5mm²
- crimping tool: 1…1.5 mm²
- wear and tear part set for crimping tool: 1…1.5 mm²
- disassembly tool
Product information
| part designation (long form) | terminal |
| part number | 1 928 498 007 |
| offer drawing | D 928 000 285A |
| technical customer documentation | Y 928 K03 004 |
| assembly instruction | Y 928 V03 004 |
目标市场及应用
Technical Features
| Wire cross-sections | 0.75...2.5 mm² |
| Grid dimension |
|
| Row distance | 4.3 mm (2-rows) |
| Temperature range |
|
| Wire sealing | silicone gel-seal |
| Nominal voltage | 20 mV...40 V (DC) |
| Current-carrying capacity | maximal 7 A (with 110 °C and Au-surface) |
| Delivery | 3.500 one-way springs |
Technical information
| packing unit | 3500 pc. |
| minimum order quantity | 3500 pc. |
| time of delivery | on request |
| terminal type | box-terminal |
| raster unit | 4.5 mm |
| type of locking mechanism (terminals) | by 2 locking beams, created by the cantilever spring |
| row distance | 4.3 mm |
| temperature range, from | -40 °C |
| temperature range, till | +130 °C |
| terminal surface | gold-plated |
| wire cross section | 1.0 - 1.5 mm² |
| seal of wire | silicone gel-seal |
| line voltage from | 20 mV (DC) |
| line voltage to | 40 V (DC) |
| current-carrying capacity | max. 7 A |
