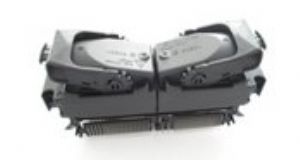

BOSCH 196-way
概述
Features
- Especially suitable for vehicle environment
- Save function over lifetime
- Usable for engine compartment requirements
- Catch mechanism for headfirst mounting
- Usable for high degree of protection requirements
Accesories
-
Application on electronic control unit :
- Terminals Matrix 1,2 CB
- Terminals BTL 2,8
- cable tie
Technical Features
| Vibration resistance | 3.4 g |
| Temperature range | -40...+120 °C |
| Degree of protection | IP X6K, X8, X9K |
| Connection cross-sections | 0.35...2.5 mm² |
| Pin size | 1,2mm; 2,8 mm |
