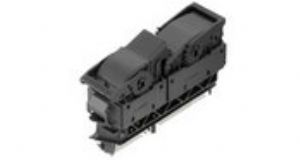

BOSCH 154-way engine oriented
概述
Features
- Especially suitable electrical connection for vehicle environment on ECUs in passenger cars
- Save function over lifetime
- Usable for engine compartment requirements
- Usable for high degree of protection requirements
- 1.2 mm cavities are tight without external parts
- Automatic terminal assembling possible
- High flexibility (Left and right exit available)
Accesories
- cable tie
Technical Features
| Vibration resistance | 4.2 g |
| Temperature range | -40...+125 °C |
| Degree of protection | IP X6K, X8, X9K |
| Connection cross-sections | 0.35…2.5 mm² |
| Vibration resistance up to 7 g sine and RMS | 57 m/s² |
| Pin size | 2.8 mm; 1.2 mm |
