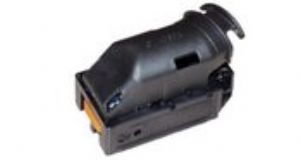

BOSCH 77-way
概述
Features
- sealed plug connection
- for limited space
- secondary locking possible
- high current stress
- silicone gel-seal resp. single wire seal
Accesories
- cover
- secondary locking
- cable tie
- cap
Product information
| part designation (long form) | wiring harness connector 37-way |
| part number | 1 928 404 205 |
| offer drawing (assembly) | A 928 000 321 |
| offer drawing (part) | D 928 002 94A |
| technical customer documentation | Y 928 K00 089 |
| assembly instruction | Y 928 F00 038 |
目标市场及应用
Technical Features
| Vibration resistance | 18 g |
| Temperature range | -40...+150 °C |
| Degree of protection | IP X4K, X6K, X9K |
| Connection cross-sections |
|
| Usable terminals |
|
| Raster unit/pin |
|
Technical information
| packing unit | 308 pc. |
| minimum order quantity | 3080 pc. |
| time of delivery | on request |
| number of positions | 37 |
| colour | black |
| code | 1 |
| secondary locking | sliding pin |
| terminal type | BMK 0,6; JPT, SPT |
| type of seal (connector) | radial seal |
| type of seal (cable) | single wire seal |
| type of locking mechanism (connector) | by a locking slide |
| vibration strength | 6 g |
| length | 65 mm |
| width | 36 mm |
| height | 33 mm |
| temperature range, min. | -40 °C |
| temperature range, max. | 150 °C |
| row distance | 4 mm |
| degree of protection | IP54K, IP69K |
| further features (SO) | module for SV 77-way, secondary locking, JPT/SPT preassembled |
