BOSCH 1928404492
概述
Product information

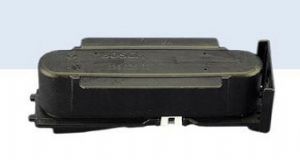

| part designation (long form) | wiring harness connector 26-way |
| part number | 1 928 404 492 |
| offer drawing (assembly) | A 928 000 607 |
| offer drawing (part) | D 928 003 09A |
| technical customer documentation | Y 928 K00 080 |
| assembly instruction | Y 928 F00 116 |
| final check instruction | Y 928 P00 262 |
Technical information
| packing unit | 244 pc. |
| minimum order quantity | 3172 pc. |
| time of delivery | on request |
| number of positions | 26 |
| cable exit direction (KR) | right |
| type of seal (connector) | radial seal |
| type of seal (cable) | silicone gelseal / single wire seal |
| type of locking mechanism (connector) | with plastic lever |
| vibration strength | 3 g |
| temperature range, min. | -40 °C |
| temperature range, max. | 120 °C |
| raster unit | 8 mm |
| row distance | 4.8 mm |
| scope of application | body attachment |
| degree of protection | IP 54K;69K |
