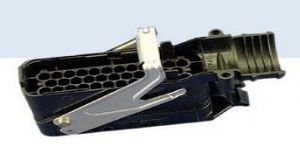

BOSCH 1928401980
概述
Product information
| part designation (long form) | wiring harness connector 35-way |
| part number | 1 928 401 980 |
| offer drawing (assembly) | A 928 000 198 |
| offer drawing (part) | D 928 001 08A |
| technical customer documentation | Y 280 K02 027 |
| assembly instruction | Y 280 F70 004 |
| additional assembly instruction | Y 280 P61 151 |
| final check instruction | Y 280 P71 037 |
Technical information
| packing unit | 160 pc. |
| minimum order quantity | 3040 pc. |
| time of delivery | on request |
| number of positions | 35 |
| colour | black |
| code | 1 |
| cable exit direction (KR) | cable exit over coding nose |
| secondary locking | none |
| type of seal (connector) | with optional rubber cap on the cable exit |
| type of seal (cable) | with optional rubber cap on the cable exit |
| type of locking mechanism (connector) | with steel lever |
| vibration strength | 3 g |
| length | 102 mm |
| width | 35.2 mm |
| height | 50.5 mm |
| temperature range, min. | -40 °C |
| temperature range, max. | 85 °C |
| raster unit | 5 mm |
| row distance | 2.8 mm |
| scope of application | body attachment |
| degree of protection | IP30, IP54K |
