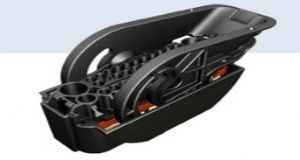

BOSCH 1928405167
概述
Product information
| part designation (long form) | wiring harness connector 38-way |
| part number | 1 928 405 167 |
| offer drawing (assembly) | 1 928 A00 289 |
| offer drawing (part) | 1 928 A00 289 |
| technical customer documentation | 1 928 A00 99T |
| assembly instruction | 1 928 A00 91M |
| final check instruction | 1 928 A00 01E |
Technical information
| packing unit | 170 pc. |
| minimum order quantity | 3060 pc. |
| time of delivery | on request |
| number of positions | 38 |
| colour | black |
| code | 0 |
| cable exit direction (KR) | left |
| secondary locking | integrated secondary locking |
| terminal type | BTL 1,5; BTL 2,8; BTL 4,8 |
| type of seal (connector) | radial seal |
| type of seal (cable) | single wire seal |
| type of locking mechanism (connector) | lever |
| vibration strength | 5 g |
| length | 94.7 mm |
| width | 36.4 mm |
| height | 48.7 mm |
| temperature range, min. | -40 °C |
| temperature range, max. | 125 °C |
| scope of application | body attachment |
| degree of protection | IPX 4K, 6K, 9K |
| further features (SO) | version for Bosch Terminals Lance (BTL) |
