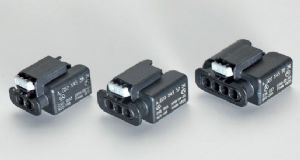

HIRSCHMANN SealStar 2.8 mm
概述
The variably designed housing family is characterized by high thermal and dynamic forces and distinguishes itself by further positive features:
- waterproof according to IPX9K
- design according to VDA Test Guideline for Automotive Connectors
- single-wire sealing and robust radial sealing
- first and second contact locking
- vibration-resistant design
- CPA (Connector Positioning Assurance)
- different colors and mechanic keyings
- convenient and safe plugging up to a hearable locking
- locking device either right or left of the connector housing
- compact design
- completely preassembled
Housing
cavities: 2- to 5-pins
cable outlet: 180°
contacts: SLK 2,8 mm
grid: 5,0 mm
temperature range: -40 °C until +150 °C
wire size range: 0,22 until 2,5 mm2
