概述

Hirschmann Automotive meets the requirements of the automotive manufacturers for smallest possible designs and technical highly ambitious electrical connectors with the MSC-family.

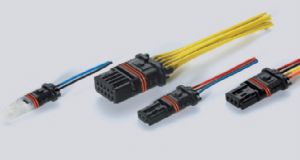

The MSC-family – MicroSealedConnector – is a standard product. Therefore the designing period for new cavities and their tool-related realization is slashed. Due to the miniaturized shape and its robustness the range of applications of the connectors is extremely versatile and their usage is diversified.
- miniaturized shape
- vibration-resistant design
- mechanically robust due to overmolding technology
- no protective covers against environmental influence necessary
- strain relief
- waterproof

Technical features
- designed for: body/engine compartment
- operation temperature:
-40 °C until +130 °C depending on conductor insulation material and application

Electrical features
- 1,2mm contact system
- contact finish
- tin, silver, gold
- max. current load (maximum values of the contact system)
- derating 20/80 °C

  surface Ag, Au 19/16A
- derating 20/80 °C
  surface Sn 17/14A
Depending on the OEM higher currents are approved. Maximum allowable currents have to be assessed in combination with the
used wire cross-section.
Minimal retention force of the coupling in the plug base

- force-locked connectors > 50N
Applicable wire
ross-section
0,22 mm² until 0,75 mm² (FLR) conductor insulation material is selected according to requirements
Tests according to Test Guideline for Automotive Connectors
PG 7     retention force and
            reliability of housings
PG 17A dynamic testing
PG 19   environmental simulations
PG 20A climatic testing of housings
PG 21A long-run temperature storage
PG 22B resistance to chemicals, extended testing
PG 23   watertightness
