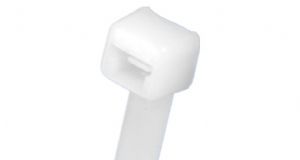

PANDUIT Pan-Ty® Cable Ties – Nylon 6.6
概述
• For indoor use
• Versatile cable ties can be used in countless applications
• One-piece construction for consistent performance and reliability
• Lowest threading force of any one-piece cable tie in the industry
• Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation
• A variety of materials and colors available for specific applications
• UL Listed for use in plenum or air handling spaces per NEC except PLT.6SM and PLT5H/6H/8H/13H
| Part Number | Length | Width | Thickness | Max. Bundle Dia. | Min. Loop Tensile Str. | Recommended Installation tools | |||||
| In. | mm | In. | mm | In. | mm | In. | mm | Lbs. | N | ||
| Subminiature Cross Section | |||||||||||
| PLT.6SM-C | 2.8 | 71 | 0.07 | 1.8 | 0.03 | 0.8 | 0.6 | 15 | 8 | 36 | GTS,GTSL,PTS |
| Miniature Cross Section–Plenum-Rated | |||||||||||
| PLT.7M-C | 3.1 | 79 | 0.09 | 2.3 | 0.032 | 0.8 | 0.68 | 17 | 18 | 80 | GTS,GTSL,GS2B,PTS,PPTS,STS2 |
| PLT1M-C | 3.9 | 99 | 0.098 | 2.5 | 0.043 | 1.1 | 0.87 | 22 | 18 | 80 | |
| PLT1.5M-C | 5.6 | 142 | 0.098 | 2.5 | 0.043 | 1.1 | 1.25 | 32 | 18 | 80 | |
| PLT2M-C | 8 | 203 | 0.098 | 2.5 | 0.043 | 1.1 | 2 | 51 | 18 | 80 | |
| Intermediate Cross Section–Plenum-Rated | |||||||||||
| PLT1.5I-C | 5.6 | 142 | 0.142 | 3.6 | 0.045 | 1.1 | 1.38 | 35 | 40 | 178 | GTS,GTSL,GS2B,PTS,PPTS,STS2 |
| PLT2I-C | 8 | 203 | 0.142 | 3.6 | 0.045 | 1.1 | 2 | 51 | 40 | 178 | |
| PLT2.5I-C | 9.7 | 246 | 0.145 | 3.7 | 0.052 | 1.3 | 2.5 | 64 | 40 | 178 | |
| PLT3I-C | 11.4 | 290 | 0.145 | 3.7 | 0.052 | 1.3 | 3 | 76 | 40 | 178 | |
| PLT4I-C | 14.5 | 368 | 0.145 | 3.7 | 0.052 | 1.3 | 4 | 102 | 40 | 178 | |
| Standard Cross Section–Plenum-Rated | |||||||||||
| PLT1S-C | 4.8 | 122 | 0.19 | 4.8 | 0.052 | 1.3 | 1 | 25 | 50 | 222 | GTS,GTSL,GS2B,GTH,GS4H,PTS,PPTS,PTH,STS2,STH2 |
| PLT1.5S-C | 6.2 | 157 | 0.19 | 4.8 | 0.052 | 1.3 | 1.5 | 38 | 50 | 222 | |
| PLT2S-C | 7.4 | 188 | 0.19 | 4.8 | 0.052 | 1.3 | 1.88 | 48 | 50 | 222 | |
| PLT2.5S-C | 9.8 | 249 | 0.19 | 4.8 | 0.052 | 1.3 | 2.5 | 64 | 50 | 222 | |
| PLT3S-C | 11.5 | 292 | 0.19 | 4.8 | 0.052 | 1.3 | 3 | 76 | 50 | 222 | |
| PLT4S-C | 14.5 | 368 | 0.19 | 4.8 | 0.052 | 1.3 | 4 | 102 | 50 | 222 | |
| PLT4.5S-C | 15.5 | 394 | 0.19 | 4.8 | 0.052 | 1.3 | 4.5 | 114 | 50 | 222 | |
| PLT5S-C | 17.5 | 445 | 0.19 | 4.8 | 0.052 | 1.3 | 5 | 127 | 50 | 222 | |
| Light-Heavy Cross Section (Straight Tip)–Plenum-Rated | |||||||||||
| PLT2H-L | 8.1 | 206 | 0.3 | 7.6 | 0.075 | 1.9 | 2 | 51 | 120 | 534 | GTH,GS4H,GS4EH,PTH,STH2,ST3EH |
| PLT2.5H-L | 9.8 | 251 | 0.3 | 7.6 | 0.075 | 1.9 | 2.5 | 64 | 120 | 534 | |
| PLT3H-L | 11.4 | 290 | 0.3 | 7.6 | 0.075 | 1.9 | 3 | 76 | 120 | 534 | |
| PLT4H-L | 14.5 | 368 | 0.3 | 7.6 | 0.075 | 1.9 | 4 | 102 | 120 | 534 | |
| PLT6LH-L | 21.9 | 556 | 0.3 | 7.6 | 0.075 | 1.9 | 6 | 152 | 120 | 534 | |
| PLT7LH-L | 24.7 | 627 | 0.3 | 7.6 | 0.075 | 1.9 | 7 | 178 | 120 | 534 | |
| PLT8LH-L | 27.6 | 701 | 0.3 | 7.6 | 0.075 | 1.9 | 8 | 203 | 120 | 534 | |
| PLT9LH-L* | 30.5 | 775 | 0.3 | 7.6 | 0.075 | 1.9 | 9 | 229 | 120 | 534 | |
| PLT10LH-L* | 34.3 | 871 | 0.3 | 7.6 | 0.075 | 1.9 | 10.31 | 262 | 120 | 534 | |
| Heavy Cross Section (Straight Tip) | |||||||||||
| PLT5H-L* | 17.7 | 450 | 0.35 | 8.9 | 0.078 | 2 | 5 | 127 | 175 | 778 | GTH,GS4H,GS4EH,PTH,STH2,ST3EH |
| PLT6H-L* | 20.9 | 530 | 0.35 | 8.9 | 0.078 | 2 | 6 | 152 | 175 | 778 | |
| PLT8H-L* | 30.6 | 779 | 0.35 | 8.9 | 0.078 | 2 | 9 | 229 | 175 | 778 | |
| PLT13H-Q* | 43.3 | 1100 | 0.35 | 8.9 | 0.078 | 2 | 13 | 330 | 175 | 778 | |
