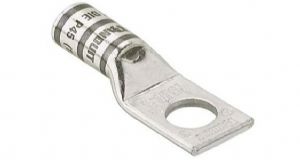

PANDUIT 单孔连接器
概述
- 带窗口检测窗，确保导线充分插入
- 套管标有颜色编码，标以PANDUIT字样，并注明竞争对手压模索引编号，以便于使用者选择压接压模
-
45°、90°弯角
- 镀锡表层防腐蚀
- 美国船级社认证

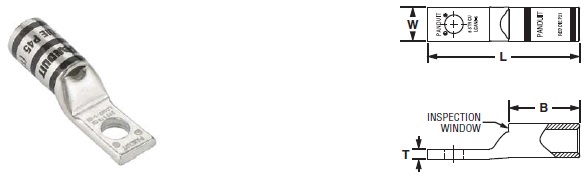

Code Conductor, One-Hole, Short Barrel with Window Lug
Type LCAS
| Part |
Copper
Conductor
Size
|
Stud
Size
|
W | B | T | L |
Color
Code
|
Panduit
Die Index
No.‡
|
Burndy
Die Index
No.‡
|
T&B
Die Index
No.‡
|
Wire
Strip
Length
|
| LCAS8-10-L | #8 AWG | #10 | 0.41 | 0.42 | 0.08 | 1.11 | Red | P21 | 49 | 21 | 1/2 |
| LCAS8-14-L | #8 AWG | 1/4 | 0.48 | 0.42 | 0.07 | 1.2 | Red | P21 | 49 | 21 | 1/2 |
| LCAS8-56-L | #8 AWG | 5/16 | 0.56 | 0.42 | 0.05 | 1.32 | Red | P21 | 49 | 21 | 1/2 |
| LCAS8-38-L | #8 AWG | 3/8 | 0.6 | 0.42 | 0.05 | 1.42 | Red | P21 | 49 | 21 | 1/2 |
| LCAS6-10-L | #6 AWG | #10 | 0.45 | 0.48 | 0.09 | 1.19 | Blue | P24 | 7 | 24 | 9/16 |
| LCAS6-14-L | #6 AWG | 1/4 | 0.48 | 0.48 | 0.08 | 1.28 | Blue | P24 | 7 | 24 | 9/16 |
| LCAS6-56-L | #6 AWG | 5/16 | 0.56 | 0.48 | 0.07 | 1.4 | Blue | P24 | 7 | 24 | 9/16 |
| LCAS6-38-L | #6 AWG | 3/8 | 0.62 | 0.48 | 0.06 | 1.5 | Blue | P24 | 7 | 24 | 9/16 |
| LCAS4-10-L | #4 AWG | #10 | 0.55 | 0.53 | 0.09 | 1.26 | Gray | P29 | 8 | 29 | 5/8 |
| LCAS4-14-L | #4 AWG | 1/4 | 0.55 | 0.53 | 0.09 | 1.35 | Gray | P29 | 8 | 29 | 5/8 |
| LCAS4-56-L | #4 AWG | 5/16 | 0.55 | 0.53 | 0.09 | 1.47 | Gray | P29 | 8 | 29 | 5/8 |
| LCAS4-38-L | #4 AWG | 3/8 | 0.62 | 0.53 | 0.07 | 1.57 | Gray | P29 | 8 | 29 | 5/8 |
| LCAS2-14-Q | #2 AWG | 1/4 | 0.6 | 0.57 | 0.1 | 1.46 | Brown | P33 | 10 | 33 | 5/8 |
| LCAS2-56-Q | #2 AWG | 5/16 | 0.66 | 0.57 | 0.1 | 1.58 | Brown | P33 | 10 | 33 | 5/8 |
| LCAS2-38-Q | #2 AWG | 3/8 | 0.66 | 0.57 | 0.1 | 1.66 | Brown | P33 | 10 | 33 | 5/8 |
| LCAS2-12-Q | #2 AWG | 1/2 | 0.75 | 0.57 | 0.08 | 1.89 | Brown | P33 | 10 | 33 | 5/8 |
| LCAS1-14-E | #1 AWG | 1/4 | 0.7 | 0.59 | 0.11 | 1.5 | Green | P37 | 11 | 37 | 11/16 |
| LCAS1-56-E | #1 AWG | 5/16 | 0.7 | 0.59 | 0.11 | 1.63 | Green | P37 | 11 | 37 | 11/16 |
| LCAS1-38-E | #1 AWG | 3/8 | 0.7 | 0.59 | 0.11 | 1.7 | Green | P37 | 11 | 37 | 11/16 |
| LCAS1-12-E | #1 AWG | 1/2 | 0.75 | 0.59 | 0.09 | 1.94 | Green | P37 | 11 | 37 | 11/16 |
| LCAS1/0-14-X | 1/0 AWG | 1/4 | 0.76 | 0.66 | 0.12 | 1.67 | Pink | P42 | 12 | 42 | 3/4 |
| LCAS1/0-56-X | 1/0 AWG | 5/16 | 0.76 | 0.66 | 0.12 | 1.72 | Pink | P42 | 12 | 42 | 3/4 |
| LCAS1/0-38-X | 1/0 AWG | 3/8 | 0.76 | 0.66 | 0.12 | 1.8 | Pink | P42 | 12 | 42 | 3/4 |
| LCAS1/0-12-X | 1/0 AWG | 1/2 | 0.8 | 0.66 | 0.12 | 2.03 | Pink | P42 | 12 | 42 | 3/4 |
| LCAS2/0-14-X | 2/0 AWG | 1/4 | 0.85 | 0.72 | 0.13 | 1.82 | Black | P45 | 13 | 45 | 3/4 |
| LCAS2/0-56-X | 2/0 AWG | 5/16 | 0.85 | 0.72 | 0.13 | 1.82 | Black | P45 | 13 | 45 | 3/4 |
| LCAS2/0-38-X | 2/0 AWG | 3/8 | 0.85 | 0.72 | 0.13 | 1.89 | Black | P45 | 13 | 45 | 3/4 |
| LCAS2/0-12-X | 2/0 AWG | 1/2 | 0.85 | 0.72 | 0.13 | 2.14 | Black | P45 | 13 | 45 | 3/4 |
| LCAS3/0-14-X | 3/0 AWG | 1/4 | 0.96 | 0.83 | 0.13 | 1.97 | Orange | P50 | 14 | 50 | 7/8 |
| LCAS3/0-56-X | 3/0 AWG | 5/16 | 0.96 | 0.83 | 0.13 | 1.97 | Orange | P50 | 14 | 50 | 7/8 |
| LCAS3/0-38-X | 3/0 AWG | 3/8 | 0.96 | 0.83 | 0.13 | 2.03 | Orange | P50 | 14 | 50 | 7/8 |
| LCAS3/0-12-X | 3/0 AWG | 1/2 | 0.96 | 0.83 | 0.13 | 2.28 | Orange | P50 | 14 | 50 | 7/8 |
| LCAS4/0-14-X | 4/0 AWG | 1/4 | 1.06 | 0.91 | 0.14 | 2.08 | Purple | P54 | 15 | 54 | 1 |
| LCAS4/0-56-X | 4/0 AWG | 5/16 | 1.06 | 0.91 | 0.14 | 2.1 | Purple | P54 | 15 | 54 | 1 |
| LCAS4/0-38-X | 4/0 AWG | 3/8 | 1.06 | 0.91 | 0.14 | 2.17 | Purple | P54 | 15 | 54 | 1 |
| LCAS4/0-12-X | 4/0 AWG | 1/2 | 1.06 | 0.91 | 0.14 | 2.4 | Purple | P54 | 15 | 54 | 1 |
| LCAS250-14-X | 250 kcmil | 1/4 | 1.17 | 1.03 | 0.14 | 2.25 | Yellow | P62 | 16 | 62 | 1 1/8 |
| LCAS250-56-X | 250 kcmil | 5/16 | 1.17 | 1.03 | 0.14 | 2.25 | Yellow | P62 | 16 | 62 | 1 1/8 |
| LCAS250-38-X | 250 kcmil | 3/8 | 1.17 | 1.03 | 0.14 | 2.32 | Yellow | P62 | 16 | 62 | 1 1/8 |
| LCAS250-12-X | 250 kcmil | 1/2 | 1.17 | 1.03 | 0.14 | 2.56 | Yellow | P62 | 16 | 62 | 1 1/8 |
Code Conductor, One-Hole, Short Barrel with Window Lug, 45° Angle
Type LCAS-H
Part
W
B
T
L
LCAS8-10H-L
#8 AWG
#10
0.41
0.42
0.08
1
Red
P21
49
21
1/2
LCAS8-14H-L
#8 AWG
1/4
0.48
0.42
0.07
1.09
Red
P21
49
21
1/2
LCAS8-56H-L
#8 AWG
5/16
0.56
0.42
0.05
1.2
Red
P21
49
21
1/2
LCAS8-38H-L
#8 AWG
3/8
0.6
0.42
0.05
1.3
Red
P21
49
21
1/2
LCAS6-10H-L
#6 AWG
#10
0.45
0.48
0.09
1.06
Blue
P24
7
24
9/16
LCAS6-14H-L
#6 AWG
1/4
0.48
0.48
0.08
1.14
Blue
P24
7
24
9/16
LCAS6-56H-L
#6 AWG
5/16
0.56
0.48
0.07
1.26
Blue
P24
7
24
9/16
LCAS6-38H-L
#6 AWG
3/8
0.62
0.48
0.06
1.35
Blue
P24
7
24
9/16
LCAS4-10H-L
#4 AWG
#10
0.55
0.53
0.09
1.12
Gray
P29
8
29
5/8
LCAS4-14H-L
#4 AWG
1/4
0.55
0.53
0.09
1.21
Gray
P29
8
29
5/8
LCAS4-56H-L
#4 AWG
5/16
0.55
0.53
0.09
1.33
Gray
P29
8
29
5/8
LCAS4-38H-L
#4 AWG
3/8
0.62
0.53
0.07
1.42
Gray
P29
8
29
5/8
LCAS2-14H-Q
#2 AWG
1/4
0.6
0.57
0.1
1.27
Brown
P33
10
33
5/8
LCAS2-56H-Q
#2 AWG
5/16
0.66
0.57
0.1
1.39
Brown
P33
10
33
5/8
LCAS2-38H-Q
#2 AWG
3/8
0.66
0.57
0.1
1.46
Brown
P33
10
33
5/8
LCAS2-12H-Q
#2 AWG
1/2
0.75
0.57
0.08
1.68
Brown
P33
10
33
5/8
LCAS1-14H-E
#1 AWG
1/4
0.7
0.59
0.11
1.29
Green
P37
11
37
11/16
LCAS1-56H-E
#1 AWG
5/16
0.7
0.59
0.11
1.42
Green
P37
11
37
11/16
LCAS1-38H-E
#1 AWG
3/8
0.7
0.59
0.11
1.49
Green
P37
11
37
11/16
LCAS1-12H-E
#1 AWG
1/2
0.75
0.59
0.09
1.73
Green
P37
11
37
11/16
LCAS1/0-14H-X
1/0 AWG
1/4
0.76
0.66
0.12
1.43
Pink
P42
12
42
3/4
LCAS1/0-56H-X
1/0 AWG
5/16
0.76
0.66
0.12
1.49
Pink
P42
12
42
3/4
LCAS1/0-38H-X
1/0 AWG
3/8
0.76
0.66
0.12
1.56
Pink
P42
12
42
3/4
LCAS1/0-12H-X
1/0 AWG
1/2
0.8
0.66
0.12
1.79
Pink
P42
12
42
3/4
LCAS2/0-14H-X
2/0 AWG
1/4
0.85
0.72
0.13
1.58
Black
P45
13
45
3/4
LCAS2/0-56H-X
2/0 AWG
5/16
0.85
0.72
0.13
1.58
Black
P45
13
45
3/4
LCAS2/0-38H-X
2/0 AWG
3/8
0.85
0.72
0.13
1.64
Black
P45
13
45
3/4
LCAS2/0-12H-X
2/0 AWG
1/2
0.85
0.72
0.13
1.89
Black
P45
13
45
3/4
LCAS3/0-14H-X
3/0 AWG
1/4
0.96
0.83
0.13
1.68
Orange
P50
14
50
7/8
LCAS3/0-56H-X
3/0 AWG
5/16
0.96
0.83
0.13
1.68
Orange
P50
14
50
7/8
LCAS3/0-38H-X
3/0 AWG
3/8
0.96
0.83
0.13
1.74
Orange
P50
14
50
7/8
LCAS3/0-12H-X
3/0 AWG
1/2
0.96
0.83
0.13
1.99
Orange
P50
14
50
7/8
LCAS4/0-14H-X
4/0 AWG
1/4
1.06
0.91
0.14
1.77
Purple
P54
15
54
1
LCAS4/0-56H-X
4/0 AWG
5/16
1.06
0.91
0.14
1.78
Purple
P54
15
54
1
LCAS4/0-38H-X
4/0 AWG
3/8
1.06
0.91
0.14
1.85
Purple
P54
15
54
1
LCAS4/0-12H-X
4/0 AWG
1/2
1.06
0.91
0.14
2.08
Purple
P54
15
54
1
LCAS250-14H-X
250 kcmil
1/4
1.17
1.03
0.14
1.89
Yellow
P62
16
62
1 1/8
LCAS250-56H-X
250 kcmil
5/16
1.17
1.03
0.14
1.9
Yellow
P62
16
62
1 1/8
LCAS250-38H-X
250 kcmil
3/8
1.17
1.03
0.14
1.97
Yellow
P62
16
62
1 1/8
LCAS250-12H-X
250 kcmil
1/2
1.17
1.03
0.14
2.2
Yellow
P62
16
62
1 1/8
Code Conductor, One-Hole, Short Barrel with Window Lug, 90° Angle
Type LCAS-F
| Part |
Copper
Conductor
Size
|
Stud
Size
|
W | B | T | L |
Color
Code
|
Panduit
Die Index
No.‡
|
Burndy
Die Index
No.‡
|
T&B
Die Index
No.‡
|
Wire
Strip
Length
|
| LCAS8-10F-L | #8 AWG | #10 | 0.41 | 0.42 | 0.08 | 0.9 | Red | P21 | 49 | 21 | 1/2 |
| LCAS8-14F-L | #8 AWG | 1/4 | 0.48 | 0.42 | 0.07 | 0.99 | Red | P21 | 49 | 21 | 1/2 |
| LCAS8-56F-L | #8 AWG | 5/16 | 0.56 | 0.42 | 0.05 | 1.11 | Red | P21 | 49 | 21 | 1/2 |
| LCAS8-38F-L | #8 AWG | 3/8 | 0.6 | 0.42 | 0.05 | 1.21 | Red | P21 | 49 | 21 | 1/2 |
| LCAS6-10F-L | #6 AWG | #10 | 0.45 | 0.48 | 0.09 | 0.94 | Blue | P24 | 7 | 24 | 9/16 |
| LCAS6-14F-L | #6 AWG | 1/4 | 0.48 | 0.48 | 0.08 | 1.03 | Blue | P24 | 7 | 24 | 9/16 |
| LCAS6-56F-L | #6 AWG | 5/16 | 0.56 | 0.48 | 0.07 | 1.15 | Blue | P24 | 7 | 24 | 9/16 |
| LCAS6-38F-L | #6 AWG | 3/8 | 0.62 | 0.48 | 0.06 | 1.25 | Blue | P24 | 7 | 24 | 9/16 |
| LCAS4-10F-L | #4 AWG | #10 | 0.55 | 0.53 | 0.09 | 1.03 | Gray | P29 | 8 | 29 | 5/8 |
| LCAS4-14F-L | #4 AWG | 1/4 | 0.55 | 0.53 | 0.09 | 1.12 | Gray | P29 | 8 | 29 | 5/8 |
| LCAS4-56F-L | #4 AWG | 5/16 | 0.55 | 0.53 | 0.09 | 1.24 | Gray | P29 | 8 | 29 | 5/8 |
| LCAS4-38F-L | #4 AWG | 3/8 | 0.62 | 0.53 | 0.07 | 1.34 | Gray | P29 | 8 | 29 | 5/8 |
| LCAS2-14F-Q | #2 AWG | 1/4 | 0.6 | 0.57 | 0.1 | 1.24 | Brown | P33 | 10 | 33 | 5/8 |
| LCAS2-56F-Q | #2 AWG | 5/16 | 0.66 | 0.57 | 0.1 | 1.36 | Brown | P33 | 10 | 33 | 5/8 |
| LCAS2-38F-Q | #2 AWG | 3/8 | 0.66 | 0.57 | 0.1 | 1.44 | Brown | P33 | 10 | 33 | 5/8 |
| LCAS2-12F-Q | #2 AWG | 1/2 | 0.75 | 0.57 | 0.08 | 1.67 | Brown | P33 | 10 | 33 | 5/8 |
| LCAS1-14F-E | #1 AWG | 1/4 | 0.7 | 0.59 | 0.11 | 1.31 | Green | P37 | 11 | 37 | 11/16 |
| LCAS1-56F-E | #1 AWG | 5/16 | 0.7 | 0.59 | 0.11 | 1.44 | Green | P37 | 11 | 37 | 11/16 |
| LCAS1-38F-E | #1 AWG | 3/8 | 0.7 | 0.59 | 0.11 | 1.51 | Green | P37 | 11 | 37 | 11/16 |
| LCAS1-12F-E | #1 AWG | 1/2 | 0.75 | 0.59 | 0.09 | 1.75 | Green | P37 | 11 | 37 | 11/16 |
| LCAS1/0-14F-X | 1/0 AWG | 1/4 | 0.76 | 0.66 | 0.12 | 1.45 | Pink | P42 | 12 | 42 | 3/4 |
| LCAS1/0-56F-X | 1/0 AWG | 5/16 | 0.76 | 0.66 | 0.12 | 1.51 | Pink | P42 | 12 | 42 | 3/4 |
| LCAS1/0-38F-X | 1/0 AWG | 3/8 | 0.76 | 0.66 | 0.12 | 1.58 | Pink | P42 | 12 | 42 | 3/4 |
| LCAS1/0-12F-X | 1/0 AWG | 1/2 | 0.8 | 0.66 | 0.12 | 1.82 | Pink | P42 | 12 | 42 | 3/4 |
| LCAS2/0-14F-X | 2/0 AWG | 1/4 | 0.85 | 0.72 | 0.13 | 1.59 | Black | P45 | 13 | 45 | 3/4 |
| LCAS2/0-56F-X | 2/0 AWG | 5/16 | 0.85 | 0.72 | 0.13 | 1.59 | Black | P45 | 13 | 45 | 3/4 |
| LCAS2/0-38F-X | 2/0 AWG | 3/8 | 0.85 | 0.72 | 0.13 | 1.66 | Black | P45 | 13 | 45 | 3/4 |
| LCAS2/0-12F-X | 2/0 AWG | 1/2 | 0.85 | 0.72 | 0.13 | 1.91 | Black | P45 | 13 | 45 | 3/4 |
| LCAS3/0-14F-X | 3/0 AWG | 1/4 | 0.96 | 0.83 | 0.13 | 1.67 | Orange | P50 | 14 | 50 | 7/8 |
| LCAS3/0-56F-X | 3/0 AWG | 5/16 | 0.96 | 0.83 | 0.13 | 1.67 | Orange | P50 | 14 | 50 | 7/8 |
| LCAS3/0-38F-X | 3/0 AWG | 3/8 | 0.96 | 0.83 | 0.13 | 1.73 | Orange | P50 | 14 | 50 | 7/8 |
| LCAS3/0-12F-X | 3/0 AWG | 1/2 | 0.96 | 0.83 | 0.13 | 1.98 | Orange | P50 | 14 | 50 | 7/8 |
| LCAS4/0-14F-X | 4/0 AWG | 1/4 | 1.06 | 0.91 | 0.14 | 1.75 | Purple | P54 | 15 | 54 | 1 |
| LCAS4/0-56F-X | 4/0 AWG | 5/16 | 1.06 | 0.91 | 0.14 | 1.77 | Purple | P54 | 15 | 54 | 1 |
| LCAS4/0-38F-X | 4/0 AWG | 3/8 | 1.06 | 0.91 | 0.14 | 1.84 | Purple | P54 | 15 | 54 | 1 |
| LCAS4/0-12F-X | 4/0 AWG | 1/2 | 1.06 | 0.91 | 0.14 | 2.07 | Purple | P54 | 15 | 54 | 1 |
| LCAS250-14F-X | 250 kcmil | 1/4 | 1.17 | 1.03 | 0.14 | 1.82 | Yellow | P62 | 16 | 62 | 1 1/8 |
| LCAS250-56F-X | 250 kcmil | 5/16 | 1.17 | 1.03 | 0.14 | 1.83 | Yellow | P62 | 16 | 62 | 1 1/8 |
| LCAS250-38F-X | 250 kcmil | 3/8 | 1.17 | 1.03 | 0.14 | 1.9 | Yellow | P62 | 16 | 62 | 1 1/8 |
| LCAS250-12F-X | 250 kcmil | 1/2 | 1.17 | 1.03 | 0.14 | 2.13 | Yellow | P62 | 16 | 62 | 1 1/8 |
Code Conductor, One-Hole, Standard Barrel with Window Lug
Type LCA
| Part |
Copper
Conductor Size
|
Stud
Size
|
W | B | T | L |
Color
Code
|
Panduit
Die Index
No.‡
|
Burndy
Die Index
No.‡
|
T&B
Die Index
No.‡
|
Wire
Strip
Length
|
| LCA10-10-L* |
#14–#10 AWG STR,
#12–#10 AWG SOL
|
#10 | 0.38 | 0.38 | 0.06 | 1.07 | — | — | — | — | 7/16 |
| LCA10-14-L* | 1/4 | 0.42 | 0.38 | 0.05 | 1.16 | — | — | — | — | 7/16 | |
| LCA10-56-L* | 5/16 | 0.54 | 0.38 | 0.04 | 1.28 | — | — | — | — | 7/16 | |
| LCA10-38-L* | 3/8 | 0.56 | 0.38 | 0.04 | 1.38 | — | — | — | — | 7/16 | |
| LCA8-10-L | #8 AWG | #10 | 0.41 | 0.56 | 0.08 | 1.25 | Red | P21 | 49 | 21 | 5/8 |
| LCA8-14-L | 1/4 | 0.48 | 0.56 | 0.07 | 1.34 | Red | P21 | 49 | 21 | 5/8 | |
| LCA8-56-L | 5/16 | 0.56 | 0.56 | 0.05 | 1.46 | Red | P21 | 49 | 21 | 5/8 | |
| LCA8-38-L | 3/8 | 0.6 | 0.56 | 0.05 | 1.56 | Red | P21 | 49 | 21 | 5/8 | |
| LCA6-10-L | #6 AWG | #10 | 0.45 | 0.81 | 0.09 | 1.52 | Blue | P24 | 7 | 24 | 7/8 |
| LCA6-14-L | 1/4 | 0.48 | 0.81 | 0.08 | 1.61 | Blue | P24 | 7 | 24 | 7/8 | |
| LCA6-56-L | 5/16 | 0.56 | 0.81 | 0.07 | 1.73 | Blue | P24 | 7 | 24 | 7/8 | |
| LCA6-38-L | 3/8 | 0.62 | 0.81 | 0.06 | 1.83 | Blue | P24 | 7 | 24 | 7/8 | |
| LCA6-12-L | 1/2 | 0.75 | 0.81 | 0.07 | 2.23 | Blue | P24 | 7 | 24 | 7/8 | |
| LCA4-10-L |
#4–#3 AWG STR,
#2 AWG SOL
|
#10 | 0.55 | 0.81 | 0.09 | 1.54 | Gray | P29 | 8 | 29 | 7/8 |
| LCA4-14-L | 1/4 | 0.55 | 0.81 | 0.09 | 1.63 | Gray | P29 | 8 | 29 | 7/8 | |
| LCA4-56-L | 5/16 | 0.55 | 0.81 | 0.09 | 1.75 | Gray | P29 | 8 | 29 | 7/8 | |
| LCA4-38-L | 3/8 | 0.62 | 0.81 | 0.07 | 1.85 | Gray | P29 | 8 | 29 | 7/8 | |
| LCA4-12-L | 1/2 | 0.75 | 0.81 | 0.07 | 2.23 | Gray | P29 | 8 | 29 | 7/8 | |
| LCA2-14-Q | #2 AWG | 1/4 | 0.6 | 0.88 | 0.1 | 1.77 | Brown | P33 | 10 | 33 | 15/16 |
| LCA2-56-Q | 5/16 | 0.66 | 0.88 | 0.1 | 1.9 | Brown | P33 | 10 | 33 | 15/16 | |
| LCA2-38-Q | 3/8 | 0.66 | 0.88 | 0.1 | 1.97 | Brown | P33 | 10 | 33 | 15/16 | |
| LCA2-12-Q | 1/2 | 0.75 | 0.88 | 0.08 | 2.21 | Brown | P33 | 10 | 33 | 15/16 | |
| LCA1-14-E | #1 AWG | 1/4 | 0.7 | 0.88 | 0.11 | 1.79 | Green | P37 | 11 | 37 | 15/16 |
| LCA1-56-E | 5/16 | 0.7 | 0.88 | 0.11 | 1.92 | Green | P37 | 11 | 37 | 15/16 | |
| LCA1-38-E | 3/8 | 0.7 | 0.88 | 0.11 | 1.99 | Green | P37 | 11 | 37 | 15/16 | |
| LCA1-12-E | 1/2 | 0.75 | 0.88 | 0.09 | 2.23 | Green | P37 | 11 | 37 | 15/16 | |
| LCA1/0-14-X | 1/0 AWG | 1/4 | 0.76 | 0.94 | 0.12 | 1.95 | Pink | P42 | 12 | 42 | 1 |
| LCA1/0-56-X | 5/16 | 0.76 | 0.94 | 0.12 | 2 | Pink | P42 | 12 | 42 | 1 | |
| LCA1/0-38-X | 3/8 | 0.76 | 0.94 | 0.12 | 2.08 | Pink | P42 | 12 | 42 | 1 | |
| LCA1/0-12-X | 1/2 | 0.8 | 0.94 | 0.12 | 2.31 | Pink | P42 | 12 | 42 | 1 | |
| LCA2/0-14-X | 2/0 AWG | 1/4 | 0.85 | 0.98 | 0.13 | 2.09 | Black | P45 | 13 | 45 | 1 1/16 |
| LCA2/0-56-X | 5/16 | 0.85 | 0.98 | 0.13 | 2.09 | Black | P45 | 13 | 45 | 1 1/16 | |
| LCA2/0-38-X | 3/8 | 0.85 | 0.98 | 0.13 | 2.15 | Black | P45 | 13 | 45 | 1 1/16 | |
| LCA2/0-12-X | 1/2 | 0.85 | 0.98 | 0.13 | 2.4 | Black | P45 | 13 | 45 | 1 1/16 | |
| LCA3/0-14-X | 3/0 AWG | 1/4 | 0.96 | 1.14 | 0.13 | 2.28 | Orange | P50 | 14 | 50 | 1 3/16 |
| LCA3/0-56-X | 5/16 | 0.96 | 1.14 | 0.13 | 2.28 | Orange | P50 | 14 | 50 | 1 3/16 | |
| LCA3/0-38-X | 3/8 | 0.96 | 1.14 | 0.13 | 2.34 | Orange | P50 | 14 | 50 | 1 3/16 | |
| LCA3/0-12-X | 1/2 | 0.96 | 1.14 | 0.13 | 2.59 | Orange | P50 | 14 | 50 | 1 3/16 | |
| LCA4/0-14-X | 4/0 AWG | 1/4 | 1.06 | 1.19 | 0.14 | 2.36 | Purple | P54 | 15 | 54 | 1 1/4 |
| LCA4/0-56-X | 5/16 | 1.06 | 1.19 | 0.14 | 2.38 | Purple | P54 | 15 | 54 | 1 1/4 | |
| LCA4/0-38-X | 3/8 | 1.06 | 1.19 | 0.14 | 2.45 | Purple | P54 | 15 | 54 | 1 1/4 | |
| LCA4/0-12-X | 1/2 | 1.06 | 1.19 | 0.14 | 2.68 | Purple | P54 | 15 | 54 | 1 1/4 | |
| LCA250-14-X | 250 kcmil | 1/4 | 1.17 | 1.25 | 0.14 | 2.47 | Yellow | P62 | 16 | 62 | 1 5/16 |
| LCA250-56-X | 5/16 | 1.17 | 1.25 | 0.14 | 2.48 | Yellow | P62 | 16 | 62 | 1 5/16 | |
| LCA250-38-X | 3/8 | 1.17 | 1.25 | 0.14 | 2.55 | Yellow | P62 | 16 | 62 | 1 5/16 | |
| LCA250-12-X | 1/2 | 1.17 | 1.25 | 0.14 | 2.78 | Yellow | P62 | 16 | 62 | 1 5/16 | |
| LCA300-56-X | 300 kcmil | 5/16 | 1.19 | 1.44 | 0.16 | 2.94 | White | P66 | 17 | 66 | 1 1/2 |
| LCA300-38-X | 3/8 | 1.19 | 1.44 | 0.16 | 2.94 | White | P66 | 17 | 66 | 1 1/2 | |
| LCA300-12-X | 1/2 | 1.19 | 1.44 | 0.16 | 3.05 | White | P66 | 17 | 66 | 1 1/2 | |
| LCA300-58-X | 5/8 | 1.19 | 1.44 | 0.16 | 3.26 | White | P66 | 17 | 66 | 1 1/2 | |
| LCA300-78-X | 7/8 | 1.19 | 1.44 | 0.16 | 3.7 | White | P66 | 17 | 66 | 1 1/2 | |
| LCA350-38-X | 350 kcmil | 3/8 | 1.28 | 1.44 | 0.17 | 2.98 | Red | P71 | 18 | 71 | 1 1/2 |
| LCA350-12-X | 1/2 | 1.28 | 1.44 | 0.17 | 3.09 | Red | P71 | 18 | 71 | 1 1/2 | |
| LCA350-58-X | 5/8 | 1.28 | 1.44 | 0.17 | 3.3 | Red | P71 | 18 | 71 | 1 1/2 | |
| LCA350-78-X | 7/8 | 1.28 | 1.44 | 0.17 | 3.74 | Red | P71 | 18 | 71 | 1 1/2 | |
| LCA400-38-6 | 400 kcmil | 3/8 | 1.39 | 1.5 | 0.18 | 3.22 | Blue | P76 | 19 | 76 | 1 9/16 |
| LCA400-12-6 | 1/2 | 1.39 | 1.5 | 0.18 | 3.22 | Blue | P76 | 19 | 76 | 1 9/16 | |
| LCA400-58-6 | 5/8 | 1.39 | 1.5 | 0.18 | 3.43 | Blue | P76 | 19 | 76 | 1 9/16 | |
| LCA400-78-6 | 7/8 | 1.39 | 1.5 | 0.18 | 3.82 | Blue | P76 | 19 | 76 | 1 9/16 | |
| LCA500-38-6 | 500 kcmil | 3/8 | 1.54 | 1.75 | 0.22 | 3.39 | Brown | P87 | 20 | 87 | 1 13/16 |
| LCA500-12-6 | 1/2 | 1.54 | 1.75 | 0.22 | 3.55 | Brown | P87 | 20 | 87 | 1 13/16 | |
| LCA500-58-6 | 5/8 | 1.54 | 1.75 | 0.22 | 3.76 | Brown | P87 | 20 | 87 | 1 13/16 | |
| LCA500-34-6 | 3/4 | 1.54 | 1.75 | 0.22 | 3.9 | Brown | P87 | 20 | 87 | 1 13/16 | |
| LCA500-78-6 | 7/8 | 1.54 | 1.75 | 0.22 | 4.15 | Brown | P87 | 20 | 87 | 1 13/16 | |
| LCA500-1-6 | 1 | 1.54 | 1.75 | 0.22 | 4.27 | Brown | P87 | 20 | 87 | 1 13/16 | |
| LCA600-12-6 | 600 kcmil | 1/2 | 1.7 | 1.75 | 0.26 | 4.2 | Green | P94 | 22 | 94 | 1 13/16 |
| LCA600-58-6 | 5/8 | 1.7 | 1.75 | 0.26 | 4.2 | Green | P94 | 22 | 94 | 1 13/16 | |
| LCA600-78-6 | 7/8 | 1.7 | 1.75 | 0.26 | 4.2 | Green | P94 | 22 | 94 | 1 13/16 | |
| LCA750-58-6 | 750 kcmil | 5/8 | 1.89 | 1.88 | 0.26 | 4.59 | Black | P106 | 24 | 106 | 1 15/16 |
Code Conductor, One-Hole, Standard Barrel with Window Lug, 45° Angle
Type LCA-H
| Part |
Copper
Conductor Size
|
Stud
Size
|
W | B | T | L |
Color
Code
|
Panduit
Die Index
No.‡
|
Burndy
Die Index
No.‡
|
T&B
Die Index
No.‡
|
Wire
Strip
Length
|
| LCA10-14H-L* |
#14–#10 AWG STR,
#12–#10 AWG SOL
|
1/4 | 0.42 | 0.38 | 0.05 | 1.05 | — | — | — | — | 7/16 |
| LCA8-10H-L | #8 AWG | #10 | 0.41 | 0.56 | 0.08 | 1.1 | Red | P21 | 49 | 21 | 5/8 |
| LCA8-14H-L | 1/4 | 0.48 | 0.56 | 0.07 | 1.19 | Red | P21 | 49 | 21 | 5/8 | |
| LCA8-56H-L | 5/16 | 0.56 | 0.56 | 0.05 | 1.3 | Red | P21 | 49 | 21 | 5/8 | |
| LCA8-38H-L | 3/8 | 0.6 | 0.56 | 0.05 | 1.4 | Red | P21 | 49 | 21 | 5/8 | |
| LCA6-10H-L | #6 AWG | #10 | 0.45 | 0.81 | 0.09 | 1.29 | Blue | P24 | 7 | 24 | 7/8 |
| LCA6-14H-L | 1/4 | 0.48 | 0.81 | 0.08 | 1.38 | Blue | P24 | 7 | 24 | 7/8 | |
| LCA6-56H-L | 5/16 | 0.56 | 0.81 | 0.07 | 1.49 | Blue | P24 | 7 | 24 | 7/8 | |
| LCA6-38H-L | 3/8 | 0.62 | 0.81 | 0.06 | 1.59 | Blue | P24 | 7 | 24 | 7/8 | |
| LCA4-10H-L |
#4–#3 AWG STR,
#2 AWG SOL
|
#10 | 0.55 | 0.81 | 0.09 | 1.31 | Gray | P29 | 8 | 29 | 7/8 |
| LCA4-14H-L | 1/4 | 0.55 | 0.81 | 0.09 | 1.4 | Gray | P29 | 8 | 29 | 7/8 | |
| LCA4-56H-L | 5/16 | 0.55 | 0.81 | 0.09 | 1.52 | Gray | P29 | 8 | 29 | 7/8 | |
| LCA4-38H-L | 3/8 | 0.62 | 0.81 | 0.07 | 1.61 | Gray | P29 | 8 | 29 | 7/8 | |
| LCA2-14H-Q | #2 AWG | 1/4 | 0.6 | 0.88 | 0.1 | 1.49 | Brown | P33 | 10 | 33 | 15/16 |
| LCA2-56H-Q | 5/16 | 0.66 | 0.88 | 0.1 | 1.61 | Brown | P33 | 10 | 33 | 15/16 | |
| LCA2-38H-Q | 3/8 | 0.66 | 0.88 | 0.1 | 1.68 | Brown | P33 | 10 | 33 | 15/16 | |
| LCA2-12H-Q | 1/2 | 0.75 | 0.88 | 0.08 | 1.9 | Brown | P33 | 10 | 33 | 15/16 | |
| LCA1-14H-E | #1 AWG | 1/4 | 0.7 | 0.88 | 0.11 | 1.5 | Green | P37 | 11 | 37 | 15/16 |
| LCA1-56H-E | 5/16 | 0.7 | 0.88 | 0.11 | 1.62 | Green | P37 | 11 | 37 | 15/16 | |
| LCA1-38H-E | 3/8 | 0.7 | 0.88 | 0.11 | 1.7 | Green | P37 | 11 | 37 | 15/16 | |
| LCA1-12H-E | 1/2 | 0.75 | 0.88 | 0.09 | 1.93 | Green | P37 | 11 | 37 | 15/16 | |
| LCA1/0-14H-X | 1/0 AWG | 1/4 | 0.76 | 0.94 | 0.12 | 1.63 | Pink | P42 | 12 | 42 | 1 |
| LCA1/0-56H-X | 5/16 | 0.76 | 0.94 | 0.12 | 1.69 | Pink | P42 | 12 | 42 | 1 | |
| LCA1/0-38H-X | 3/8 | 0.76 | 0.94 | 0.12 | 1.76 | Pink | P42 | 12 | 42 | 1 | |
| LCA1/0-12H-X | 1/2 | 0.8 | 0.94 | 0.12 | 1.99 | Pink | P42 | 12 | 42 | 1 | |
| LCA2/0-14H-X | 2/0 AWG | 1/4 | 0.85 | 0.98 | 0.13 | 1.77 | Black | P45 | 13 | 45 | 1 1/16 |
| LCA2/0-56H-X | 5/16 | 0.85 | 0.98 | 0.13 | 1.77 | Black | P45 | 13 | 45 | 1 1/16 | |
| LCA2/0-38H-X | 3/8 | 0.85 | 0.98 | 0.13 | 1.83 | Black | P45 | 13 | 45 | 1 1/16 | |
| LCA2/0-12H-X | 1/2 | 0.85 | 0.98 | 0.13 | 2.08 | Black | P45 | 13 | 45 | 1 1/16 | |
| LCA2/0-34H-X | 3/4 | 1.06 | 0.98 | 0.09 | 2.66 | Black | P45 | 13 | 45 | 1 1/16 | |
| LCA3/0-14H-X | 3/0 AWG | 1/4 | 0.96 | 1.14 | 0.13 | 1.9 | Orange | P50 | 14 | 50 | 1 3/16 |
| LCA3/0-56H-X | 5/16 | 0.96 | 1.14 | 0.13 | 1.9 | Orange | P50 | 14 | 50 | 1 3/16 | |
| LCA3/0-38H-X | 3/8 | 0.96 | 1.14 | 0.13 | 1.96 | Orange | P50 | 14 | 50 | 1 3/16 | |
| LCA3/0-12H-X | 1/2 | 0.96 | 1.14 | 0.13 | 2.21 | Orange | P50 | 14 | 50 | 1 3/16 | |
| LCA4/0-14H-X | 4/0 AWG | 1/4 | 1.06 | 1.19 | 0.14 | 1.97 | Purple | P54 | 15 | 54 | 1 1/4 |
| LCA4/0-56H-X | 5/16 | 1.06 | 1.19 | 0.14 | 1.98 | Purple | P54 | 15 | 54 | 1 1/4 | |
| LCA4/0-38H-X | 3/8 | 1.06 | 1.19 | 0.14 | 2.05 | Purple | P54 | 15 | 54 | 1 1/4 | |
| LCA4/0-12H-X | 1/2 | 1.06 | 1.19 | 0.14 | 2.28 | Purple | P54 | 15 | 54 | 1 1/4 | |
| LCA250-14H-X | 250 kcmil | 1/4 | 1.17 | 1.25 | 0.14 | 2.05 | Yellow | P62 | 16 | 62 | 1 5/16 |
| LCA250-56H-X | 5/16 | 1.17 | 1.25 | 0.14 | 2.06 | Yellow | P62 | 16 | 62 | 1 5/16 | |
| LCA250-38H-X | 3/8 | 1.17 | 1.25 | 0.14 | 2.13 | Yellow | P62 | 16 | 62 | 1 5/16 | |
| LCA250-12H-X | 1/2 | 1.17 | 1.25 | 0.14 | 2.36 | Yellow | P62 | 16 | 62 | 1 5/16 | |
| LCA300-56H-X | 300 kcmil | 1/4 | 1.19 | 1.44 | 0.16 | 2.55 | White | P66 | 17 | 66 | 1 1/2 |
| LCA300-38H-X | 5/16 | 1.19 | 1.44 | 0.16 | 2.55 | White | P66 | 17 | 66 | 1 1/2 | |
| LCA300-12H-X | 3/8 | 1.19 | 1.44 | 0.16 | 2.66 | White | P66 | 17 | 66 | 1 1/2 | |
| LCA300-58H-X | 1/2 | 1.19 | 1.44 | 0.16 | 2.87 | White | P66 | 17 | 66 | 1 1/2 | |
| LCA300-78H-X | 7/8 | 1.19 | 1.44 | 0.16 | 3.31 | White | P66 | 17 | 66 | 1 1/2 | |
| LCA350-38H-X | 350 kcmil | 3/8 | 1.28 | 1.44 | 0.17 | 2.59 | Red | P71 | 18 | 71 | 1 1/2 |
| LCA350-12H-X | 1/2 | 1.28 | 1.44 | 0.17 | 2.7 | Red | P71 | 18 | 71 | 1 1/2 | |
| LCA350-58H-X | 5/8 | 1.28 | 1.44 | 0.17 | 2.91 | Red | P71 | 18 | 71 | 1 1/2 | |
| LCA350-78H-X | 7/8 | 1.28 | 1.44 | 0.17 | 3.35 | Red | P71 | 18 | 71 | 1 1/2 | |
| LCA400-38H-6 | 400 kcmil | 3/8 | 1.39 | 1.5 | 0.18 | 2.85 | Blue | P76 | 19 | 76 | 1 9/16 |
| LCA400-12H-6 | 1/2 | 1.39 | 1.5 | 0.18 | 2.85 | Blue | P76 | 19 | 76 | 1 9/16 | |
| LCA400-58H-6 | 5/8 | 1.39 | 1.5 | 0.18 | 3.06 | Blue | P76 | 19 | 76 | 1 9/16 | |
| LCA400-78H-6 | 7/8 | 1.39 | 1.5 | 0.18 | 3.45 | Blue | P76 | 19 | 76 | 1 9/16 | |
| LCA500-38H-6 | 500 kcmil | 3/8 | 1.54 | 1.75 | 0.22 | 2.94 | Brown | P87 | 20 | 87 | 1 13/16 |
| LCA500-12H-6 | 1/2 | 1.54 | 1.75 | 0.22 | 3.1 | Brown | P87 | 20 | 87 | 1 13/16 | |
| LCA500-58H-6 | 5/8 | 1.54 | 1.75 | 0.22 | 3.31 | Brown | P87 | 20 | 87 | 1 13/16 | |
| LCA500-34H-6 | 3/4 | 1.54 | 1.75 | 0.22 | 3.45 | Brown | P87 | 20 | 87 | 1 13/16 | |
| LCA500-78H-6 | 7/8 | 1.54 | 1.75 | 0.22 | 3.7 | Brown | P87 | 20 | 87 | 1 13/16 | |
| LCA500-1H-6 | 1 | 1.54 | 1.75 | 0.22 | 3.82 | Brown | P87 | 20 | 87 | 1 13/16 | |
| LCA600-12H-6 | 600 kcmil | 1/2 | 1.7 | 1.75 | 0.26 | 3.76 | Green | P94 | 22 | 94 | 1 13/16 |
| LCA600-58H-6 | 5/8 | 1.7 | 1.75 | 0.26 | 3.76 | Green | P94 | 22 | 94 | 1 13/16 | |
| LCA600-78H-6 | 7/8 | 1.7 | 1.75 | 0.26 | 3.76 | Green | P94 | 22 | 94 | 1 13/16 |
Code Conductor, One-Hole, Standard Barrel with Window Lug, 90° Angle
Type LCA-F
| Part |
Copper
Conductor Size
|
Stud
Size
|
W | B | T | L |
Color
Code
|
Panduit
Die Index
No.‡
|
Burndy
Die Index
No.‡
|
T&B
Die Index
No.‡
|
Wire
Strip
Length
|
| LCA10-14F-L* |
#14–#10 AWG STR,
#12–#10 AWG SOL
|
1/4 | 0.42 | 0.38 | 0.05 | 0.94 | — | — | — | — | 7/16 |
| LCA8-10F-L | #8 AWG | #10 | 0.41 | 0.56 | 0.08 | 0.9 | Red | P21 | 49 | 21 | 5/8 |
| LCA8-14F-L | 1/4 | 0.48 | 0.56 | 0.07 | 0.99 | Red | P21 | 49 | 21 | 5/8 | |
| LCA8-56F-L | 5/16 | 0.56 | 0.56 | 0.05 | 1.11 | Red | P21 | 49 | 21 | 5/8 | |
| LCA8-38F-L | 3/8 | 0.6 | 0.56 | 0.05 | 1.21 | Red | P21 | 49 | 21 | 5/8 | |
| LCA6-10F-L | #6 AWG | #10 | 0.45 | 0.81 | 0.09 | 0.94 | Blue | P24 | 7 | 24 | 7/8 |
| LCA6-14F-L | 1/4 | 0.48 | 0.81 | 0.08 | 1.03 | Blue | P24 | 7 | 24 | 7/8 | |
| LCA6-56F-L | 5/16 | 0.56 | 0.81 | 0.07 | 1.15 | Blue | P24 | 7 | 24 | 7/8 | |
| LCA6-38F-L | 3/8 | 0.62 | 0.81 | 0.06 | 1.25 | Blue | P24 | 7 | 24 | 7/8 | |
| LCA4-10F-L |
#4–#3 AWG STR,
#2 AWG SOL
|
#10 | 0.55 | 0.81 | 0.09 | 1.03 | Gray | P29 | 8 | 29 | 7/8 |
| LCA4-14F-L | 1/4 | 0.55 | 0.81 | 0.09 | 1.12 | Gray | P29 | 8 | 29 | 7/8 | |
| LCA4-56F-L | 5/16 | 0.55 | 0.81 | 0.09 | 1.24 | Gray | P29 | 8 | 29 | 7/8 | |
| LCA4-38F-L | 3/8 | 0.62 | 0.81 | 0.07 | 1.34 | Gray | P29 | 8 | 29 | 7/8 | |
| LCA4-12F-L | 1/2 | 0.75 | 0.81 | 0.07 | 1.59 | Gray | P29 | 8 | 29 | 7/8 | |
| LCA2-14F-Q | #2 AWG | 1/4 | 0.6 | 0.88 | 0.1 | 1.24 | Brown | P33 | 10 | 33 | 15/16 |
| LCA2-56F-Q | 5/16 | 0.66 | 0.88 | 0.1 | 1.36 | Brown | P33 | 10 | 33 | 15/16 | |
| LCA2-38F-Q | 3/8 | 0.66 | 0.88 | 0.1 | 1.44 | Brown | P33 | 10 | 33 | 15/16 | |
| LCA2-12F-Q | 1/2 | 0.75 | 0.88 | 0.08 | 1.67 | Brown | P33 | 10 | 33 | 15/16 | |
| LCA1-14F-E | #1 AWG | 1/4 | 0.7 | 0.88 | 0.11 | 1.31 | Green | P37 | 11 | 37 | 15/16 |
| LCA1-56F-E | 5/16 | 0.7 | 0.88 | 0.11 | 1.44 | Green | P37 | 11 | 37 | 15/16 | |
| LCA1-38F-E | 3/8 | 0.7 | 0.88 | 0.11 | 1.51 | Green | P37 | 11 | 37 | 15/16 | |
| LCA1-12F-E | 1/2 | 0.75 | 0.88 | 0.09 | 1.75 | Green | P37 | 11 | 37 | 15/16 | |
| LCA1/0-14F-X | 1/0 AWG | 1/4 | 0.76 | 0.94 | 0.12 | 1.45 | Pink | P42 | 12 | 42 | 1 |
| LCA1/0-56F-X | 5/16 | 0.76 | 0.94 | 0.12 | 1.51 | Pink | P42 | 12 | 42 | 1 | |
| LCA1/0-38F-X | 3/8 | 0.76 | 0.94 | 0.12 | 1.58 | Pink | P42 | 12 | 42 | 1 | |
| LCA1/0-12F-X | 1/2 | 0.8 | 0.94 | 0.12 | 1.82 | Pink | P42 | 12 | 42 | 1 | |
| LCA2/0-14F-X | 2/0 AWG | 1/4 | 0.85 | 0.98 | 0.13 | 1.61 | Black | P45 | 13 | 45 | 1 1/16 |
| LCA2/0-56F-X | 5/16 | 0.85 | 0.98 | 0.13 | 1.59 | Black | P45 | 13 | 45 | 1 1/16 | |
| LCA2/0-38F-X | 3/8 | 0.85 | 0.98 | 0.13 | 1.66 | Black | P45 | 13 | 45 | 1 1/16 | |
| LCA2/0-12F-X | 1/2 | 0.85 | 0.98 | 0.13 | 1.91 | Black | P45 | 13 | 45 | 1 1/16 | |
| LCA3/0-14F-X | 3/0 AWG | 1/4 | 0.96 | 1.14 | 0.13 | 1.67 | Orange | P50 | 14 | 50 | 1 3/16 |
| LCA3/0-56F-X | 5/16 | 0.96 | 1.14 | 0.13 | 1.67 | Orange | P50 | 14 | 50 | 1 3/16 | |
| LCA3/0-38F-X | 3/8 | 0.96 | 1.14 | 0.13 | 1.73 | Orange | P50 | 14 | 50 | 1 3/16 | |
| LCA3/0-12F-X | 1/2 | 0.96 | 1.14 | 0.13 | 1.98 | Orange | P50 | 14 | 50 | 1 3/16 | |
| LCA4/0-14F-X | 4/0 AWG | 1/4 | 1.06 | 1.19 | 0.14 | 1.75 | Purple | P54 | 15 | 54 | 1 1/4 |
| LCA4/0-56F-X | 5/16 | 1.06 | 1.19 | 0.14 | 1.77 | Purple | P54 | 15 | 54 | 1 1/4 | |
| LCA4/0-38F-X | 3/8 | 1.06 | 1.19 | 0.14 | 1.84 | Purple | P54 | 15 | 54 | 1 1/4 | |
| LCA4/0-12F-X | 1/2 | 1.06 | 1.19 | 0.14 | 2.07 | Purple | P54 | 15 | 54 | 1 1/4 | |
| LCA250-14F-X | 250 kcmil | 1/4 | 1.17 | 1.25 | 0.14 | 1.82 | Yellow | P62 | 16 | 62 | 1 5/16 |
| LCA250-56F-X | 5/16 | 1.17 | 1.25 | 0.14 | 1.83 | Yellow | P62 | 16 | 62 | 1 5/16 | |
| LCA250-38F-X | 3/8 | 1.17 | 1.25 | 0.14 | 1.9 | Yellow | P62 | 16 | 62 | 1 5/16 | |
| LCA250-12F-X | 1/2 | 1.17 | 1.25 | 0.14 | 2.13 | Yellow | P62 | 16 | 62 | 1 5/16 | |
| LCA300-56F-X | 300 kcmil | 5/16 | 1.19 | 1.44 | 0.16 | 2.07 | White | P66 | 17 | 66 | 1 1/2 |
| LCA300-38F-X | 3/8 | 1.19 | 1.44 | 0.16 | 2.07 | White | P66 | 17 | 66 | 1 1/2 | |
| LCA300-12F-X | 1/2 | 1.19 | 1.44 | 0.16 | 2.18 | White | P66 | 17 | 66 | 1 1/2 | |
| LCA300-58F-X | 5/8 | 1.19 | 1.44 | 0.16 | 2.39 | White | P66 | 17 | 66 | 1 1/2 | |
| LCA300-78F-X | 7/8 | 1.19 | 1.44 | 0.16 | 2.83 | White | P66 | 17 | 66 | 1 1/2 | |
| LCA350-38F-X | 350 kcmil | 3/8 | 1.28 | 1.44 | 0.17 | 2.13 | Red | P71 | 18 | 71 | 1 1/2 |
| LCA350-12F-X | 1/2 | 1.28 | 1.44 | 0.17 | 2.24 | Red | P71 | 18 | 71 | 1 1/2 | |
| LCA350-58F-X | 5/8 | 1.28 | 1.44 | 0.17 | 2.45 | Red | P71 | 18 | 71 | 1 1/2 | |
| LCA350-78F-X | 7/8 | 1.28 | 1.44 | 0.17 | 2.89 | Red | P71 | 18 | 71 | 1 1/2 | |
| LCA400-38F-6 | 400 kcmil | 3/8 | 1.39 | 1.5 | 0.18 | 2.37 | Blue | P76 | 19 | 76 | 1 9/16 |
| LCA400-12F-6 | 1/2 | 1.39 | 1.5 | 0.18 | 2.37 | Blue | P76 | 19 | 76 | 1 9/16 | |
| LCA400-58F-6 | 5/8 | 1.39 | 1.5 | 0.18 | 2.58 | Blue | P76 | 19 | 76 | 1 9/16 | |
| LCA400-78F-6 | 7/8 | 1.39 | 1.5 | 0.18 | 2.97 | Blue | P76 | 19 | 76 | 1 9/16 | |
| LCA500-38F-6 | 500 kcmil | 3/8 | 1.54 | 1.75 | 0.22 | 2.32 | Brown | P87 | 20 | 87 | 1 13/16 |
| LCA500-12F-6 | 1/2 | 1.54 | 1.75 | 0.22 | 2.48 | Brown | P87 | 20 | 87 | 1 13/16 | |
| LCA500-58F-6 | 5/8 | 1.54 | 1.75 | 0.22 | 2.69 | Brown | P87 | 20 | 87 | 1 13/16 | |
| LCA500-34F-6 | 3/4 | 1.54 | 1.75 | 0.22 | 2.83 | Brown | P87 | 20 | 87 | 1 13/16 | |
| LCA500-78F-6 | 7/8 | 1.54 | 1.75 | 0.22 | 3.08 | Brown | P87 | 20 | 87 | 1 13/16 | |
| LCA500-1F-6 | 1 | 1.54 | 1.75 | 0.22 | 3.2 | Brown | P87 | 20 | 87 | 1 13/16 | |
| LCA600-12F-6 | 600 kcmil | 1/2 | 1.7 | 1.75 | 0.26 | 3.21 | Green | P94 | 22 | 94 | 1 13/16 |
| LCA600-58F-6 | 5/8 | 1.7 | 1.75 | 0.26 | 3.21 | Green | P94 | 22 | 94 | 1 13/16 | |
| LCA600-78F-6 | 7/8 | 1.7 | 1.75 | 0.26 | 3.21 | Green | P94 | 22 | 94 | 1 13/16 |
Code Conductor, One-Hole, Standard Barrel with Window, Narrow Tongue Lug
Type LCAN
| Part |
Copper
Conductor Size
|
Stud
Size
|
W | B | T | L |
Color
Code
|
Panduit
Die Index
No.‡
|
Burndy
Die Index
No.‡
|
T&B
Die Index
No.‡
|
Wire
Strip
Length
|
| LCAN8-6-L | #8 AWG | #6 | 0.27 | 0.56 | 0.1 | 1.24 | Red | P21 | 49 | 21 | 5/8 |
| LCAN6-6-L | #6 AWG | #6 | 0.31 | 0.81 | 0.1 | 1.51 | Blue | P24 | 7 | 24 | 7/8 |
| LCAN4-10-L |
#4–#3 AWG STR,
#2 AWG SOL
|
#10 | 0.4 | 0.81 | 0.11 | 1.54 | Gray | P29 | 8 | 29 | 7/8 |
| LCAN4-14-L | 1/4 | 0.4 | 0.81 | 0.11 | 1.63 | Gray | P29 | 8 | 29 | 7/8 | |
| LCAN2-10-Q | #2 AWG | #10 | 0.42 | 0.88 | 0.12 | 1.67 | Brown | P33 | 10 | 33 | 15/16 |
| LCAN2-14-Q | 1/4 | 0.42 | 0.88 | 0.12 | 1.77 | Brown | P33 | 10 | 33 | 15/16 | |
| LCAN1-10-E | #1 AWG | #10 | 0.47 | 0.88 | 0.11 | 1.69 | Green | P37 | 11 | 37 | 15/16 |
| LCAN1-14-E | 1/4 | 0.47 | 0.88 | 0.12 | 1.79 | Green | P37 | 11 | 37 | 15/16 | |
| LCAN1/0-10-X | 1/0 AWG | #10 | 0.52 | 0.94 | 0.13 | 1.78 | Pink | P42 | 12 | 42 | 1 |
| LCAN1/0-14-X | 1/4 | 0.52 | 0.94 | 0.13 | 1.95 | Pink | P42 | 12 | 42 | 1 | |
| LCAN1/0-56-X | 5/16 | 0.52 | 0.94 | 0.13 | 2 | Pink | P42 | 12 | 42 | 1 | |
| LCAN2/0-10-X | 2/0 AWG | #10 | 0.58 | 0.98 | 0.13 | 1.84 | Black | P45 | 13 | 45 | 1 1/16 |
| LCAN2/0-14-X | 1/4 | 0.58 | 0.98 | 0.14 | 2.09 | Black | P45 | 13 | 45 | 1 1/16 | |
| LCAN2/0-56-X | 5/16 | 0.58 | 0.98 | 0.14 | 2.09 | Black | P45 | 13 | 45 | 1 1/16 | |
| LCAN2/0-38-X | 3/8 | 0.58 | 0.98 | 0.13 | 2.15 | Black | P45 | 13 | 45 | 1 1/16 | |
| LCAN3/0-14-X | 3/0 AWG | 1/4 | 0.64 | 1.14 | 0.14 | 2.28 | Orange | P50 | 14 | 50 | 1 3/16 |
| LCAN3/0-56-X | 5/16 | 0.64 | 1.14 | 0.13 | 2.28 | Orange | P50 | 14 | 50 | 1 3/16 | |
| LCAN3/0-38-X | 3/8 | 0.64 | 1.14 | 0.13 | 2.34 | Orange | P50 | 14 | 50 | 1 3/16 | |
| LCAN4/0-14-X | 4/0 AWG | 1/4 | 0.71 | 1.19 | 0.14 | 2.36 | Purple | P54 | 15 | 54 | 1 1/4 |
| LCAN4/0-56-X | 5/16 | 0.71 | 1.19 | 0.14 | 2.38 | Purple | P54 | 15 | 54 | 1 1/4 | |
| LCAN4/0-38-X | 3/8 | 0.71 | 1.19 | 0.15 | 2.45 | Purple | P54 | 15 | 54 | 1 1/4 | |
| LCAN250-14-X | 250 kcmil | 1/4 | 0.77 | 1.25 | 0.14 | 2.47 | Yellow | P62 | 16 | 62 | 1 5/16 |
| LCAN250-38-X | 3/8 | 0.77 | 1.25 | 0.15 | 2.55 | Yellow | P62 | 16 | 62 | 1 5/16 | |
| LCAN300-14-X | 300 kcmil | 1/4 | 0.81 | 1.44 | 0.16 | 2.9 | White | P66 | 17 | 66 | 1 1/2 |
| LCAN300-38-X | 3/8 | 0.81 | 1.44 | 0.16 | 2.94 | White | P66 | 17 | 66 | 1 1/2 | |
| LCAN350-38-X | 350 kcmil | 3/8 | 0.88 | 1.44 | 0.17 | 2.98 | Red | P71 | 18 | 71 | 1 1/2 |
| LCAN350-12-X | 1/2 | 0.88 | 1.44 | 0.17 | 3.09 | Red | P71 | 18 | 71 | 1 1/2 | |
| LCAN400-38-6 | 400 kcmil | 3/8 | 0.95 | 1.5 | 0.18 | 3.22 | Blue | P76 | 19 | 76 | 1 9/16 |
| LCAN400-12-6 | 1/2 | 0.95 | 1.5 | 0.18 | 3.22 | Blue | P76 | 19 | 76 | 1 9/16 | |
| LCAN500-38-6 | 500 kcmil | 3/8 | 1.06 | 1.75 | 0.23 | 3.39 | Brown | P87 | 20 | 87 | 1 13/16 |
| LCAN500-12-6 | 1/2 | 1.06 | 1.75 | 0.22 | 3.55 | Brown | P87 | 20 | 87 | 1 13/16 | |
| LCAN600-38-6 | 600 kcmil | 3/8 | 1.19 | 1.75 | 0.27 | 3.44 | Green | P94 | 22 | 94 | 1 13/16 |
| LCAN600-12-6 | 1/2 | 1.19 | 1.75 | 0.27 | 4.2 | Green | P94 | 22 | 94 | 1 13/16 | |
| LCAN750-38-6 | 750 kcmil | 3/8 | 1.3 | 1.88 | 0.28 | 3.84 | Black | P106 | 24 | 106 | 1 15/16 |
| LCAN750-12-6 | 1/2 | 1.3 | 1.88 | 0.28 | 4.03 | Black | P106 | 24 | 106 | 1 15/16 | |
| LCAN750-58-6 | 5/8 | 1.3 | 1.88 | 0.28 | 4.59 | Black | P106 | 24 | 106 | 1 15/16 |
Code Conductor, One-Hole, Long Barrel Lug
Type LCB
Part
W
B
T
L
LCB8-10-L
#8 AWG
#10
0.41
0.7
0.08
1.44
Red
P21
49
21
3/4
LCB8-14-L
1/4
0.48
0.7
0.07
1.53
Red
P21
49
21
3/4
LCB8-38-L
3/8
0.6
0.7
0.05
1.75
Red
P21
49
21
3/4
LCB6-10-L
#6 AWG
#10
0.45
1.07
0.09
1.84
Blue
P24
7
24
1 1/8
LCB6-14-L
1/4
0.48
1.07
0.08
1.93
Blue
P24
7
24
1 1/8
LCB6-38-L
3/8
0.62
1.07
0.05
2.15
Blue
P24
7
24
1 1/8
LCB4-10-L
#10
0.55
1.05
0.09
1.86
Gray
P29
8
29
1 1/8
LCB4-14-L
1/4
0.55
1.05
0.09
1.95
Gray
P29
8
29
1 1/8
LCB4-56-L
5/16
0.62
1.05
0.07
2.13
Gray
P29
8
29
1 1/8
LCB4-38-L
3/8
0.62
1.05
0.07
2.17
Gray
P29
8
29
1 1/8
LCB2-10-Q
#2 AWG
#10
0.6
1.16
0.1
2.07
Brown
P33
10
33
1 1/4
LCB2-14-Q
1/4
0.6
1.16
0.1
2.14
Brown
P33
10
33
1 1/4
LCB2-56-Q
5/16
0.66
1.16
0.1
2.27
Brown
P33
10
33
1 1/4
LCB2-38-Q
3/8
0.66
1.16
0.1
2.34
Brown
P33
10
33
1 1/4
LCB2-12-Q
1/2
0.75
1.16
0.08
2.58
Brown
P33
10
33
1 1/4
LCB1-10-E
#1 AWG
#10
0.7
1.36
0.11
2.3
Green
P37
11
37
1 7/16
LCB1-56-E
5/16
0.7
1.36
0.11
2.5
Green
P37
11
37
1 7/16
LCB1-38-E
3/8
0.7
1.36
0.11
2.57
Green
P37
11
37
1 7/16
LCB1-12-E
1/2
0.75
1.36
0.09
2.81
Green
P37
11
37
1 7/16
LCB1/0-10-X
1/0 AWG
#10
0.76
1.44
0.12
2.41
Pink
P42
12
42
1 1/2
LCB1/0-56-X
5/16
0.76
1.44
0.12
2.61
Pink
P42
12
42
1 1/2
LCB1/0-38-X
3/8
0.76
1.44
0.12
2.69
Pink
P42
12
42
1 1/2
LCB1/0-12-X
1/2
0.8
1.44
0.12
2.92
Pink
P42
12
42
1 1/2
LCB2/0-38-X
2/0 AWG
3/8
0.85
1.5
0.13
2.82
Black
P45
13
45
1 9/16
LCB2/0-12-X
1/2
0.85
1.5
0.13
3.07
Black
P45
13
45
1 9/16
LCB3/0-38-X
3/0 AWG
3/8
0.96
1.5
0.13
2.87
Orange
P50
14
50
1 9/16
LCB3/0-12-X
1/2
0.96
1.5
0.13
3.12
Orange
P50
14
50
1 9/16
LCB4/0-38-X
4/0 AWG
3/8
1.06
1.56
0.14
3.03
Purple
P54
15
54
1 5/8
LCB4/0-12-X
1/2
1.06
1.56
0.14
3.22
Purple
P54
15
54
1 5/8
LCB250-12-X
250 kcmil
1/2
1.17
1.61
0.14
3.32
Yellow
P62
16
62
1 11/16
LCB250-78-X
7/8
1.25
1.61
0.12
3.85
Yellow
P62
16
62
1 11/16
LCB300-56-X
300 kcmil
5/16
1.19
2.24
0.16
3.95
White
P66
17
66
2 5/16
LCB300-38-X
3/8
1.19
2.24
0.16
3.95
White
P66
17
66
2 5/16
LCB300-12-X
1/2
1.19
2.24
0.16
4.06
White
P66
17
66
2 5/16
LCB350-12-X
350 kcmil
1/2
1.28
2.24
0.17
4.11
Red
P71
18
71
2 5/16
LCB350-78-X
7/8
1.28
2.24
0.17
4.78
Red
P71
18
71
2 5/16
LCB400-38-6
400 kcmil
3/8
1.39
2.3
0.18
4.27
Blue
P76
19
76
2 3/8
LCB400-12-6
1/2
1.39
2.3
0.18
4.27
Blue
P76
19
76
2 3/8
LCB400-58-6
5/8
1.39
2.3
0.18
4.48
Blue
P76
19
76
2 3/8
LCB400-78-6
7/8
1.39
2.3
0.18
4.88
Blue
P76
19
76
2 3/8
LCB500-12-6
500 kcmil
1/2
1.54
2.5
0.22
4.53
Brown
P87
20
87
2 9/16
LCB500-58-6
5/8
1.54
2.5
0.22
4.74
Brown
P87
20
87
2 9/16
LCB500-78-6
7/8
1.54
2.5
0.22
5.13
Brown
P87
20
87
2 9/16
LCB600-12-6
600 kcmil
1/2
1.7
2.69
0.26
5.4
Green
P94
22
94
2 3/4
LCB600-58-6
5/8
1.7
2.69
0.26
5.4
Green
P94
22
94
2 3/4
LCB750-58-6
750 kcmil
5/8
1.89
2.88
0.26
5.98
Black
P106
24
106
2 15/16
LCB750-78-6
7/8
1.89
2.88
0.26
6.07
Black
P106
24
106
2 15/16
LCB800-58-6
800
5/8
1.95
2.94
0.29
6.06
Orange
P107
25
107
3
LCB1000-58-3
1000
5/8
2.17
3
0.32
6.32
White
P125
27
125
3 1/16
Code Conductor, One-Hole, Long Barrel Lug, 45° Angle
Type LCB-H
Part
W
B
T
L
LCB8-10H-L
#8 AWG
#10
0.41
0.7
0.08
1.23
Red
P21
49
21
3/4
LCB8-14H-L
1/4
0.48
0.7
0.07
1.31
Red
P21
49
21
3/4
LCB6-10H-L
#6 AWG
#10
0.45
1.07
0.09
1.52
Blue
P24
7
24
1 1/8
LCB6-14H-L
1/4
0.48
1.07
0.08
1.6
Blue
P24
7
24
1 1/8
LCB6-38H-L
3/8
0.62
1.07
0.05
1.81
Blue
P24
7
24
1 1/8
LCB4-10H-L
#10
0.55
1.05
0.09
1.54
Gray
P29
8
29
1 1/8
LCB4-14H-L
1/4
0.55
1.05
0.09
1.63
Gray
P29
8
29
1 1/8
LCB2-10H-Q
#2 AWG
#10
0.6
1.16
0.1
1.68
Brown
P33
10
33
1 1/4
LCB2-56H-Q
5/16
0.66
1.16
0.1
1.87
Brown
P33
10
33
1 1/4
LCB1-10H-E
#1 AWG
#10
0.7
1.36
0.11
1.83
Green
P37
11
37
1 7/16
LCB1-56H-E
5/16
0.7
1.36
0.11
2.03
Green
P37
11
37
1 7/16
LCB1/0-10H-X
1/0 AWG
#10
0.76
1.44
0.12
1.92
Pink
P42
12
42
1 1/2
LCB1/0-56H-X
5/16
0.76
1.44
0.12
2.12
Pink
P42
12
42
1 1/2
LCB1/0-38H-X
3/8
0.76
1.44
0.12
2.19
Pink
P42
12
42
1 1/2
LCB1/0-12H-X
1/2
0.8
1.44
0.11
2.42
Pink
P42
12
42
1 1/2
LCB2/0-38H-X
2/0 AWG
3/8
0.85
1.5
0.13
2.31
Black
P45
13
45
1 9/16
LCB2/0-12H-X
1/2
0.85
1.5
0.13
2.53
Black
P45
13
45
1 9/16
LCB3/0-38H-X
3/0 AWG
3/8
0.96
1.5
0.13
2.33
Orange
P50
14
50
1 9/16
LCB3/0-12H-X
1/2
0.96
1.5
0.13
2.58
Orange
P50
14
50
1 9/16
LCB4/0-38H-X
4/0 AWG
3/8
1.06
1.56
0.14
2.48
Purple
P54
15
54
1 5/8
LCB4/0-12H-X
1/2
1.06
1.56
0.14
2.67
Purple
P54
15
54
1 5/8
LCB250-12H-X
250 kcmil
1/2
1.17
1.61
0.14
2.74
Yellow
P62
16
62
1 11/16
LCB250-78H-X
7/8
1.25
1.61
0.12
3.27
Yellow
P62
16
62
1 11/16
LCB300-56H-X
300 kcmil
5/16
1.19
2.24
0.16
3.24
White
P66
17
66
2 5/16
LCB300-38H-X
3/8
1.19
2.24
0.16
3.24
White
P66
17
66
2 5/16
LCB300-12H-X
1/2
1.19
2.24
0.16
3.35
White
P66
17
66
2 5/16
LCB350-12H-X
300 kcmil
1/2
1.28
2.24
0.17
3.39
Red
P71
18
71
2 5/16
LCB350-78H-X
7/8
1.28
2.24
0.17
4.04
Red
P71
18
71
2 5/16
LCB400-12H-6
400 kcmil
1/2
1.39
2.3
0.18
3.53
Blue
P76
19
76
2 3/8
LCB400-58H-6
5/8
1.39
2.3
0.18
3.74
Blue
P76
19
76
2 3/8
LCB400-78H-6
7/8
1.39
2.3
0.18
4.13
Blue
P76
19
76
2 3/8
LCB500-12H-6
500 kcmil
1/2
1.54
2.5
0.22
3.74
Brown
P87
20
87
2 9/16
LCB500-58H-6
5/8
1.54
2.5
0.22
3.95
Brown
P87
20
87
2 9/16
LCB500-78H-6
7/8
1.54
2.5
0.22
4.34
Brown
P87
20
87
2 9/16
LCB600-12H-6
600 kcmil
1/2
1.7
2.69
0.26
4.56
Green
P94
22
94
2 3/4
LCB600-58H-6
5/8
1.7
2.69
0.26
4.56
Green
P94
22
94
2 3/4
Code Conductor, One-Hole, Long Barrel Lug, 90° Angle
Type LCB-F
Part
W
B
T
L
LCB8-10F-L
#8 AWG
#10
0.41
0.7
0.08
1.08
Red
P21
49
21
3/4
LCB8-14F-L
1/4
0.48
0.7
0.07
1.07
Red
P21
49
21
3/4
LCB6-10F-L
#6 AWG
#10
0.45
1.07
0.09
1.49
Blue
P24
7
24
1 1/8
LCB6-14F-L
1/4
0.48
1.07
0.08
1.48
Blue
P24
7
24
1 1/8
LCB6-38F-L
3/8
0.62
1.07
0.05
1.45
Blue
P24
7
24
1 1/8
LCB4-10F-L
#10
0.55
1.05
0.09
1.53
Gray
P29
8
29
1 1/8
LCB4-14F-L
1/4
0.55
1.05
0.09
1.53
Gray
P29
8
29
1 1/8
LCB2-10F-Q
#2 AWG
#10
0.6
1.16
0.1
1.75
Brown
P33
10
33
1 1/4
LCB2-56F-Q
5/16
0.66
1.16
0.1
1.74
Brown
P33
10
33
1 1/4
LCB1-10F-E
#1 AWG
#10
0.7
1.36
0.11
2
Green
P37
11
37
1 7/16
LCB1-56F-E
5/16
0.7
1.36
0.11
2
Green
P37
11
37
1 7/16
LCB1/0-10F-X
1/0 AWG
#10
0.76
1.44
0.12
2.15
Pink
P42
12
42
1 1/2
LCB1/0-56F-X
5/16
0.76
1.44
0.12
2.15
Pink
P42
12
42
1 1/2
LCB1/0-38F-X
3/8
0.76
1.44
0.12
2.15
Pink
P42
12
42
1 1/2
LCB1/0-12F-X
1/2
0.8
1.44
0.12
2.14
Pink
P42
12
42
1 1/2
LCB2/0-38F-X
2/0 AWG
3/8
0.85
1.5
0.13
2.3
Black
P45
13
45
1 9/16
LCB3/0-38F-X
3/0 AWG
3/8
0.96
1.5
0.13
2.35
Orange
P50
14
50
1 9/16
LCB3/0-12F-X
1/2
0.96
1.5
0.13
2.35
Orange
P50
14
50
1 9/16
LCB4/0-38F-X
4/0 AWG
3/8
1.06
1.56
0.14
2.48
Purple
P54
15
54
1 5/8
LCB4/0-12F-X
1/2
1.06
1.56
0.14
2.48
Purple
P54
15
54
1 5/8
LCB250-12F-X
250 kcmil
1/2
1.17
1.61
0.14
2.57
Yellow
P62
16
62
1 11/16
LCB250-78F-X
7/8
1.25
1.61
0.12
2.49
Yellow
P62
16
62
1 11/16
LCB350-12F-X
350 kcmil
1/2
1.28
2.24
0.17
3.34
Red
P71
18
71
2 5/16
LCB350-78F-X
7/8
1.28
2.24
0.17
3.34
Red
P71
18
71
2 5/16
LCB400-58F-6
400 kcmil
5/8
1.39
2.3
0.18
3.47
Blue
P76
19
76
2 3/8
LCB400-78F-6
7/8
1.39
2.3
0.18
3.47
Blue
P76
19
76
2 3/8
LCB500-12F-6
500 kcmil
1/2
1.54
2.5
0.22
3.77
Brown
P87
20
87
2 9/16
LCB500-58F-6
5/8
1.54
2.5
0.22
3.77
Brown
P87
20
87
2 9/16
LCB500-78F-6
7/8
1.54
2.5
0.22
3.77
Brown
P87
20
87
2 9/16
LCB600-12F-6
600 kcmil
1/2
1.7
2.69
0.26
4.08
Green
P94
22
94
2 3/4
LCB600-58F-6
5/8
1.7
2.69
0.26
4.08
Green
P94
22
94
2 3/4
Code Conductor, One-Hole, Long Barrel with Window Lug
Type LCB-W
Part
W
B
T
L
LCB10-14W-L*
1/4
0.42
0.53
0.05
1.31
—
—
—
—
9/16
LCB750-38W-6
750 kcmil
3/8
1.89
2.88
0.26
4.83
Black
P106
24
106
2 15/16
LCB750-12W-6
1/2
1.89
2.88
0.26
5.03
Black
P106
24
106
2 15/16
LCB750-58W-6
5/8
1.89
2.88
0.26
5.58
Black
P106
24
106
2 15/16
LCB750-78W-6
7/8
1.89
2.88
0.26
5.68
Black
P106
24
106
2 15/16
LCB800-12W-6
800 kcmil
1/2
1.95
2.94
0.3
5.11
Orange
P107
25
107
3
LCB800-58W-6
5/8
1.95
2.94
0.3
5.68
Orange
P107
25
107
3
LCB1000-38W-3
1000 kcmil
3/8
2.17
3
0.32
5.08
White
P125
27
125
3 1/16
LCB1000-12W-3
1/2
2.17
3
0.32
5.27
White
P125
27
125
3 1/16
LCB1000-58W-3
5/8
2.17
3
0.32
5.92
White
P125
27
125
3 1/16
Code Conductor, One-Hole, Long Barrel with Window Lug, 45° Angle
Type LCB-WH
Part
W
B
T
L
LCB10-14WH-L
0.42
0.53
0.05
1.15
—
—
—
—
9/16
Code Conductor, One-Hole, Long Barrel with Window Lug, 90° Angle
Type LCB-WF
Part
W
B
T
L
LCB10-14WF-L
1/4
0.42
0.53
0.05
0.94
—
—
—
—
9/16
Code Conductor, One-Hole, Long Barrel with Corona Relief Taper Lug
Type LCBH
Part
W
B
T
L
LCBH4-38-L
#4 AWG
3/8
0.62
1.05
0.07
2.16
Gray
P29
8
29
1 1/8
LCBH2-38-Q
#2 AWG
3/8
0.66
1.16
0.1
2.34
Brown
P33
10
33
1 1/4
LCBH1-38-E
#1 AWG
3/8
0.7
1.36
0.1
2.57
Green
P37
11
37
1 7/16
LCBH1/0-38-X
1/0 AWG
3/8
0.76
1.44
0.12
2.69
Pink
P42
12
42
1 1/2
LCBH2/0-12-X
2/0 AWG
1/2
0.85
1.5
0.13
3.07
Black
P45
13
45
1 9/16
LCBH3/0-12-X
3/0 AWG
1/2
0.96
1.5
0.13
3.12
Orange
P50
14
50
1 9/16
LCBH4/0-12-X
4/0 AWG
1/2
1.06
1.56
0.14
3.22
Purple
P54
15
54
1 5/8
LCBH250-12-X
250 kcmil
1/2
1.17
1.61
0.14
3.32
Yellow
P62
16
62
1 11/16
Flex Conductor, One-Hole, Standard Barrel with Window Lug
Type LCAX
Part Number
Flex Conductor Size
Figure
Dimensions(In.)
W
B
T
L
LCAX8-10-L
#8 AWG
#8 AWG
#8 AWG
#10
0.41
0.42
0.08
1.11
Red
P21
49
21
1/2
LCAX8-14-L
1/4
0.48
0.42
0.07
1.2
Red
P21
49
21
1/2
LCAX8-56-L
5/16
0.56
0.42
0.05
1.32
Red
P21
49
21
1/2
LCAX8-38-L
3/8
0.6
0.42
0.05
1.42
Red
P21
49
21
1/2
LCAX6-10-L
#6 AWG
#6 AWG
#6 AWG
#10
0.45
0.48
0.09
1.19
Blue
P24
7
24
9/16
LCAX6-14-L
1/4
0.48
0.48
0.08
1.28
Blue
P24
7
24
9/16
LCAX6-56-L
5/16
0.56
0.48
0.07
1.4
Blue
P24
7
24
9/16
LCAX6-38-L
3/8
0.62
0.48
0.06
1.5
Blue
P24
7
24
9/16
LCAX4-10-L
#4 AWG
#4 AWG
#10
0.55
0.53
0.09
1.26
Gray
P29
8
29
5/8
LCAX4-14-L
1/4
0.55
0.53
0.09
1.35
Gray
P29
8
29
5/8
LCAX4-56-L
5/16
0.55
0.53
0.09
1.47
Gray
P29
8
29
5/8
LCAX4-38-L
3/8
0.62
0.53
0.07
1.57
Gray
P29
8
29
5/8
LCAX2-10-E*
#2 AWG
#2 AWG
#2 AWG
#10
0.7
0.59
0.11
1.4
Brown
P33
10
33
11/16
LCAX2-14-E*
1/4
0.7
0.59
0.11
1.5
Brown
P33
10
33
11/16
LCAX2-56-E*
5/16
0.7
0.59
0.11
1.63
Brown
P33
10
33
11/16
LCAX2-38-E*
3/8
0.7
0.59
0.11
1.7
Brown
P33
10
33
11/16
LCAX2-12-E*
1/2
0.75
0.59
0.09
1.94
Brown
P33
10
33
11/16
LCAX1-10-X
#1 AWG
#1 AWG
#1 AWG
#10
0.76
0.66
0.12
1.5
Green
P37
11
37
3/4
LCAX1-14-X
1/4
0.76
0.66
0.12
1.67
Green
P37
11
37
3/4
LCAX1-56-X
5/16
0.76
0.66
0.12
1.72
Green
P37
11
37
3/4
LCAX1-38-X
3/8
0.76
0.66
0.12
1.8
Green
P37
11
37
3/4
LCAX1-12-X
1/2
0.8
0.66
0.12
2.03
Green
P37
11
37
3/4
LCAX1/0-14-X
1/0 AWG
1/0 AWG
1/0 AWG
1/4
0.85
0.72
0.13
1.82
Pink
P42
12
42
3/4
LCAX1/0-56-X
5/16
0.85
0.72
0.13
1.82
Pink
P42
12
42
3/4
LCAX1/0-38-X
3/8
0.85
0.72
0.13
1.89
Pink
P42
12
42
3/4
LCAX1/0-12-X
1/2
0.85
0.72
0.13
2.14
Pink
P42
12
42
3/4
LCAX1/0-58-X
5/8
0.96
0.72
0.11
2.38
Pink
P42
12
42
3/4
LCAX2/0-10-X
2/0 AWG
2/0 AWG
2/0 AWG
#10
0.96
0.83
0.13
1.72
Black
P45
13
45
7/8
LCAX2/0-14-X
1/4
0.96
0.83
0.13
1.97
Black
P45
13
45
7/8
LCAX2/0-56-X
5/16
0.96
0.83
0.13
1.97
Black
P45
13
45
7/8
LCAX2/0-38-X
3/8
0.96
0.83
0.13
2.03
Black
P45
13
45
7/8
LCAX2/0-12-X
1/2
0.96
0.83
0.13
2.28
Black
P45
13
45
7/8
LCAX2/0-58-X
5/8
0.96
0.83
0.13
2.52
Black
P45
13
45
7/8
LCAX3/0-10-X
3/0 AWG
3/0 AWG
3/0 AWG
#10
1.06
0.91
0.14
1.84
Orange
P50
14
50
1
LCAX3/0-14-X
1/4
1.06
0.91
0.14
2.08
Orange
P50
14
50
1
LCAX3/0-56-X
5/16
1.06
0.91
0.14
2.1
Orange
P50
14
50
1
LCAX3/0-38-X
3/8
1.06
0.91
0.14
2.17
Orange
P50
14
50
1
LCAX3/0-12-X
1/2
1.06
0.91
0.14
2.4
Orange
P50
14
50
1
LCAX3/0-58-X
5/8
1.06
0.91
0.14
2.64
Orange
P50
14
50
1
LCAX4/0-14-X
4/0 AWG
4/0 AWG
4/0 AWG
1/4
1.19
1.03
0.16
2.3
Purple
P54
15
54
1 1/16
LCAX4/0-56-X
5/16
1.19
1.03
0.16
2.53
Purple
P54
15
54
1 1/16
LCAX4/0-38-X
3/8
1.19
1.03
0.16
2.53
Purple
P54
15
54
1 1/16
LCAX4/0-12-X
1/2
1.19
1.03
0.16
2.64
Purple
P54
15
54
1 1/16
LCAX4/0-58-X
5/8
1.19
1.03
0.16
2.85
Purple
P54
15
54
1 1/16
LCAX4/0-34-X
3/4
1.19
1.03
0.16
3.04
Purple
P54
15
54
1 1/16
LCAX250-14-X
250 kcmil
262.6 kcmil
—
1/4
1.28
1.03
0.17
2.34
Yellow
P62
16
62
1 1/16
LCAX250-56-X
5/16
1.28
1.03
0.17
2.57
Yellow
P62
16
62
1 1/16
LCAX250-38-X
3/8
1.28
1.03
0.17
2.57
Yellow
P62
16
62
1 1/16
LCAX250-12-X
1/2
1.28
1.03
0.17
2.68
Yellow
P62
16
62
1 1/16
LCAX250-58-X
5/8
1.28
1.03
0.17
2.89
Yellow
P62
16
62
1 1/16
LCAX250-34-X
3/4
1.28
1.03
0.17
3.08
Yellow
P62
16
62
1 1/16
LCAX300-38-6
300 kcmil
313.1 kcmil
—
3/8
1.39
1.19
0.18
2.91
Red
P71
18
71H
1 1/4
LCAX300-12-6
1/2
1.39
1.19
0.18
2.91
Red
P71
18
71H
1 1/4
LCAX300-58-6
5/8
1.39
1.19
0.18
3.12
Red
P71
18
71H
1 1/4
LCAX350-56-6
350 kcmil
373.7 kcmil
—
5/16
1.54
1.29
0.22
2.93
Blue
P76
19
76H
1 3/8
LCAX350-38-6
3/8
1.54
1.29
0.22
2.93
Blue
P76
19
76H
1 3/8
LCAX350-12-6
1/2
1.54
1.29
0.22
3.09
Blue
P76
19
76H
1 3/8
LCAX350-58-6
5/8
1.54
1.29
0.22
3.3
Blue
P76
19
76H
1 3/8
LCAX450-12-6
450 kcmil
444.4 kcmil
—
1/2
1.7
1.4
0.26
3.6
Brown
P87
20
87H
1 7/16
LCAX450-58-6
5/8
1.7
1.4
0.26
3.73
Brown
P87
20
87H
1 7/16
LCAX500-56-6
500 kcmil
535.3 kcmil
—
5/16
1.89
1.48
0.26
3.27
Pink
P99
L99
99H
1 9/16
LCAX500-38-6
3/8
1.89
1.48
0.26
3.27
Pink
P99
L99
99H
1 9/16
LCAX500-12-6
1/2
1.89
1.48
0.26
3.64
Pink
P99
L99
99H
1 9/16
LCAX500-58-6
5/8
1.89
1.48
0.26
4.2
Pink
P99
L99
99H
1 9/16
LCAX650-56-6
—
646.4 kcmil
—
5/16
1.95
1.45
0.3
3.27
Black
P106
24
106H
1 1/2
LCAX650-38-6
3/8
1.95
1.45
0.3
3.27
Black
P106
24
106H
1 1/2
LCAX650-12-6
1/2
1.95
1.45
0.3
3.64
Black
P106
24
106H
1 1/2
LCAX650-58-6
5/8
1.95
1.45
0.3
4.2
Black
P106
24
106H
1 1/2
LCAX750-12-3
—
777.7 kcmil
—
1/2
2.17
1.66
0.32
3.94
Yellow
P115
L115
115H
1 3/4
LCAX750-58-3
5/8
2.17
1.66
0.32
4.59
Yellow
P115
L115
115H
1 3/4
Flex Conductor, One-Hole, Standard Barrel with Window Lug, 45° Angle
Type LCAX-H
Part Number
Flex
Conductor Size
Figure
Dimensions(In.)
W
B
T
L
LCAX8-10H-L
#8 AWG
#8 AWG
#8 AWG
#10
0.41
0.42
0.08
1
Red
P21
49
21
1/2
LCAX8-14H-L
1/4
0.48
0.42
0.07
1.09
Red
P21
49
21
1/2
LCAX8-56H-L
5/16
0.56
0.42
0.05
1.2
Red
P21
49
21
1/2
LCAX8-38H-L
3/8
0.6
0.42
0.05
1.3
Red
P21
49
21
1/2
LCAX6-10H-L
#6 AWG
#6 AWG
#6 AWG
#10
0.45
0.48
0.09
1.06
Blue
P24
7
24
9/16
LCAX6-14H-L
1/4
0.48
0.48
0.08
1.14
Blue
P24
7
24
9/16
LCAX6-56H-L
5/16
0.56
0.48
0.07
1.26
Blue
P24
7
24
9/16
LCAX6-38H-L
3/8
0.62
0.48
0.06
1.35
Blue
P24
7
24
9/16
LCAX4-10H-L
#4 AWG
#4 AWG
#10
0.55
0.53
0.09
1.12
Gray
P29
8
29
5/8
LCAX4-14H-L
1/4
0.55
0.53
0.09
1.21
Gray
P29
8
29
5/8
LCAX4-56H-L
5/16
0.55
0.53
0.09
1.33
Gray
P29
8
29
5/8
LCAX4-38H-L
3/8
0.62
0.53
0.07
1.42
Gray
P29
8
29
5/8
LCAX2-10H-E
#2 AWG
#2 AWG
#2 AWG
#10
0.7
0.59
0.11
1.22
Brown
P33
10
33
11/16
LCAX2-14H-E
1/4
0.7
0.59
0.11
1.29
Brown
P33
10
33
11/16
LCAX2-56H-E
5/16
0.7
0.59
0.11
1.42
Brown
P33
10
33
11/16
LCAX2-38H-E
3/8
0.7
0.59
0.11
1.49
Brown
P33
10
33
11/16
LCAX2-12H-E
1/2
0.75
0.59
0.09
1.73
Brown
P33
10
33
11/16
LCAX1-10H-X
#1 AWG
#1 AWG
#1 AWG
#10
0.76
0.66
0.12
1.43
Green
P37
11
37
3/4
LCAX1-14H-X
1/4
0.76
0.66
0.12
1.43
Green
P37
11
37
3/4
LCAX1-56H-X
5/16
0.76
0.66
0.12
1.49
Green
P37
11
37
3/4
LCAX1-38H-X
3/8
0.76
0.66
0.12
1.56
Green
P37
11
37
3/4
LCAX1-12H-X
1/2
0.8
0.66
0.12
1.8
Green
P37
11
37
3/4
LCAX1/0-14H-X
1/0 AWG
1/0 AWG
1/0 AWG
1/4
0.85
0.72
0.13
1.58
Pink
P42
12
42
3/4
LCAX1/0-56H-X
5/16
0.85
0.72
0.13
1.58
Pink
P42
12
42
3/4
LCAX1/0-38H-X
3/8
0.85
0.72
0.13
1.64
Pink
P42
12
42
3/4
LCAX1/0-12H-X
1/2
0.85
0.72
0.13
1.89
Pink
P42
12
42
3/4
LCAX2/0-10H-X
2/0 AWG
2/0 AWG
2/0 AWG
#10
0.96
0.83
0.13
1.56
Black
P45
13
45
7/8
LCAX2/0-14H-X
1/4
0.96
0.83
0.13
1.68
Black
P45
13
45
7/8
LCAX2/0-56H-X
5/16
0.96
0.83
0.13
1.68
Black
P45
13
45
7/8
LCAX2/0-38H-X
3/8
0.96
0.83
0.13
1.74
Black
P45
13
45
7/8
LCAX2/0-12H-X
1/2
0.96
0.83
0.13
1.99
Black
P45
13
45
7/8
LCAX2/0-58H-X
5/8
0.96
0.83
0.13
2.28
Black
P45
13
45
7/8
LCAX3/0-10H-X
3/0 AWG
3/0 AWG
3/0 AWG
#10
1.06
0.91
0.14
1.77
Orange
P50
14
50
1
LCAX3/0-14H-X
1/4
1.06
0.91
0.14
1.77
Orange
P50
14
50
1
LCAX3/0-56H-X
5/16
1.06
0.91
0.14
1.78
Orange
P50
14
50
1
LCAX3/0-38H-X
3/8
1.06
0.91
0.14
1.85
Orange
P50
14
50
1
LCAX3/0-12H-X
1/2
1.06
0.91
0.14
2.08
Orange
P50
14
50
1
LCAX4/0-14H-X
4/0 AWG
4/0 AWG
4/0 AWG
1/4
1.19
1.03
0.16
2.03
Purple
P54
15
54
1 1/16
LCAX4/0-56H-X
5/16
1.19
1.03
0.16
2.26
Purple
P54
15
54
1 1/16
LCAX4/0-38H-X
3/8
1.19
1.03
0.16
2.26
Purple
P54
15
54
1 1/16
LCAX4/0-12H-X
1/2
1.19
1.03
0.16
2.37
Purple
P54
15
54
1 1/16
LCAX4/0-58H-X
5/8
1.19
1.03
0.16
2.58
Purple
P54
15
54
1 1/16
LCAX4/0-34H-X
3/4
1.19
1.03
0.16
2.58
Purple
P54
15
54
1 1/16
LCAX250-14H-X
250 kcmil
262.6 kcmil
—
1/4
1.28
1.03
0.17
2.3
Yellow
P62
16
62
1 1/16
LCAX250-56H-X
5/16
1.28
1.03
0.17
2.3
Yellow
P62
16
62
1 1/16
LCAX250-38H-X
3/8
1.28
1.03
0.17
2.3
Yellow
P62
16
62
1 1/16
LCAX250-12H-X
1/2
1.28
1.03
0.17
2.41
Yellow
P62
16
62
1 1/16
LCAX250-58H-X
5/8
1.28
1.03
0.17
2.62
Yellow
P62
16
62
1 1/16
LCAX250-34H-X
3/4
1.28
1.03
0.17
2.62
Yellow
P62
16
62
1 1/16
LCAX300-38H-6
300 kcmil
313.1 kcmil
—
3/8
1.39
1.19
0.18
2.64
Red
P71
18
71H
1 1/4
LCAX300-12H-6
1/2
1.39
1.19
0.18
2.64
Red
P71
18
71H
1 1/4
LCAX300-58H-6
5/8
1.39
1.19
0.18
2.85
Red
P71
18
71H
1 1/4
LCAX350-56H-6
350 kcmil
373.7 kcmil
—
5/16
1.54
1.29
0.22
2.62
Blue
P76
19
76H
1 3/8
LCAX350-38H-6
3/8
1.54
1.29
0.22
2.62
Blue
P76
19
76H
1 3/8
LCAX350-12H-6
1/2
1.54
1.29
0.22
2.78
Blue
P76
19
76H
1 3/8
LCAX350-58H-6
5/8
1.54
1.29
0.22
2.99
Blue
P76
19
76H
1 3/8
LCAX450-12H-6
450 kcmil
444.4 kcmil
—
1/2
1.7
1.4
0.26
3.26
Brown
P87
20
87H
1 7/16
LCAX450-58H-6
5/8
1.7
1.4
0.26
3.39
Brown
P87
20
87H
1 7/16
LCAX500-56H-6
500 kcmil
535.3 kcmil
—
5/16
1.89
1.48
0.26
2.87
Pink
P99
L99
99H
1 9/16
LCAX500-38H-6
3/8
1.89
1.48
0.26
2.87
Pink
P99
L99
99H
1 9/16
LCAX500-12H-6
1/2
1.89
1.48
0.26
3.24
Pink
P99
L99
99H
1 9/16
LCAX500-58H-6
5/8
1.89
1.48
0.26
3.8
Pink
P99
L99
99H
1 9/16
LCAX650-56H-6
—
646.4 kcmil
—
5/16
1.95
1.45
0.3
2.89
Black
P106
24
106H
1 1/2
LCAX650-38H-6
3/8
1.95
1.45
0.3
2.89
Black
P106
24
106H
1 1/2
LCAX650-12H-6
1/2
1.95
1.45
0.3
3.26
Black
P106
24
106H
1 1/2
LCAX650-58H-6
5/8
1.95
1.45
0.3
3.82
Black
P106
24
106H
1 1/2
LCAX750-12H-3
—
777.7 kcmil
—
1/2
2.17
1.66
0.32
3.52
Yellow
P115
L115
115H
1 3/4
LCAX750-58H-3
5/8
2.17
1.66
0.32
4.18
Yellow
P115
L115
115H
1 3/4
Flex Conductor, One-Hole, Standard Barrel with Window Lug, 90° Angle
Type LCAX-F
Part Number
Flex
Conductor Size
Figure
Dimensions(In.)
W
B
T
L
LCAX8-10F-L
#8 AWG
#8 AWG
#8 AWG
#10
0.41
0.42
0.08
0.9
Red
P21
49
21
1/2
LCAX8-14F-L
1/4
0.48
0.42
0.07
0.99
Red
P21
49
21
1/2
LCAX8-56F-L
5/16
0.56
0.42
0.05
1.11
Red
P21
49
21
1/2
LCAX8-38F-L
3/8
0.6
0.42
0.05
1.21
Red
P21
49
21
1/2
LCAX6-10F-L
#6 AWG
#6 AWG
#6 AWG
#10
0.45
0.48
0.09
0.99
Blue
P24
7
24
9/16
LCAX6-14F-L
1/4
0.48
0.48
0.08
1.03
Blue
P24
7
24
9/16
LCAX6-56F-L
5/16
0.56
0.48
0.07
1.15
Blue
P24
7
24
9/16
LCAX6-38F-L
3/8
0.62
0.48
0.06
1.25
Blue
P24
7
24
9/16
LCAX4-10F-L
#4 AWG
#4 AWG
#10
0.55
0.53
0.09
1.03
Gray
P29
8
29
5/8
LCAX4-14F-L
1/4
0.55
0.53
0.09
1.12
Gray
P29
8
29
5/8
LCAX4-56F-L
5/16
0.55
0.53
0.09
1.24
Gray
P29
8
29
5/8
LCAX4-38F-L
3/8
0.62
0.53
0.07
1.34
Gray
P29
8
29
5/8
LCAX2-10F-E*
#2 AWG
#2 AWG
#2 AWG
#10
0.7
0.59
0.11
1.21
Brown
P33
10
33
11/16
LCAX2-14F-E*
1/4
0.7
0.59
0.11
1.31
Brown
P33
10
33
11/16
LCAX2-56F-E*
5/16
0.7
0.59
0.11
1.44
Brown
P33
10
33
11/16
LCAX2-38F-E*
3/8
0.7
0.59
0.11
1.51
Brown
P33
10
33
11/16
LCAX2-12F-E*
1/2
0.75
0.59
0.09
1.75
Brown
P33
10
33
11/16
LCAX1-10F-X
#1 AWG
#1 AWG
#1 AWG
#10
0.76
0.66
0.12
1.28
Green
P37
11
37
3/4
LCAX1-14F-X
1/4
0.76
0.66
0.12
1.45
Green
P37
11
37
3/4
LCAX1-56F-X
5/16
0.76
0.66
0.12
1.51
Green
P37
11
37
3/4
LCAX1-38F-X
3/8
0.76
0.66
0.12
1.58
Green
P37
11
37
3/4
LCAX1-12F-X
1/2
0.8
0.66
0.12
1.82
Green
P37
11
37
3/4
LCAX1/0-14F-X
1/0 AWG
1/0 AWG
1/0 AWG
1/4
0.85
0.72
0.13
1.59
Pink
P42
12
42
3/4
LCAX1/0-56F-X
5/16
0.85
0.72
0.13
1.59
Pink
P42
12
42
3/4
LCAX1/0-38F-X
3/8
0.85
0.72
0.13
1.66
Pink
P42
12
42
3/4
LCAX1/0-12F-X
1/2
0.85
0.72
0.13
1.91
Pink
P42
12
42
3/4
LCAX2/0-10F-X
2/0 AWG
2/0 AWG
2/0 AWG
#10
0.96
0.83
0.13
1.42
Black
P45
13
45
7/8
LCAX2/0-14F-X
1/4
0.96
0.83
0.13
1.67
Black
P45
13
45
7/8
LCAX2/0-56F-X
5/16
0.96
0.83
0.13
1.67
Black
P45
13
45
7/8
LCAX2/0-38F-X
3/8
0.96
0.83
0.13
1.73
Black
P45
13
45
7/8
LCAX2/0-12F-X
1/2
0.96
0.83
0.13
1.98
Black
P45
13
45
7/8
LCAX2/0-58F-X
5/8
0.96
0.83
0.13
2.27
Black
P45
13
45
7/8
LCAX3/0-10F-X
3/0 AWG
3/0 AWG
3/0 AWG
#10
1.06
0.91
0.14
1.51
Orange
P50
14
50
1
LCAX3/0-14F-X
1/4
1.06
0.91
0.14
1.75
Orange
P50
14
50
1
LCAX3/0-56F-X
5/16
1.06
0.91
0.14
1.77
Orange
P50
14
50
1
LCAX3/0-38F-X
3/8
1.06
0.91
0.14
1.84
Orange
P50
14
50
1
LCAX3/0-12F-X
1/2
1.06
0.91
0.14
2.07
Orange
P50
14
50
1
LCAX4/0-14F-X
4/0 AWG
4/0 AWG
4/0 AWG
1/4
1.19
1.03
0.16
1.84
Purple
P54
15
54
1 1/16
LCAX4/0-56F-X
5/16
1.19
1.03
0.16
2.07
Purple
P54
15
54
1 1/16
LCAX4/0-38F-X
3/8
1.19
1.03
0.16
2.07
Purple
P54
15
54
1 1/16
LCAX4/0-12F-X
1/2
1.19
1.03
0.16
2.18
Purple
P54
15
54
1 1/16
LCAX4/0-58F-X
5/8
1.19
1.03
0.16
2.39
Purple
P54
15
54
1 1/16
LCAX4/0-34F-X
3/4
1.19
1.03
0.16
2.58
Purple
P54
15
54
1 1/16
LCAX250-14F-X
250 kcmil
262.6 kcmil
—
1/4
1.28
1.03
0.17
1.9
Yellow
P62
16
62
1 1/16
LCAX250-56F-X
5/16
1.28
1.03
0.17
2.13
Yellow
P62
16
62
1 1/16
LCAX250-38F-X
3/8
1.28
1.03
0.17
2.13
Yellow
P62
16
62
1 1/16
LCAX250-12F-X
1/2
1.28
1.03
0.17
2.24
Yellow
P62
16
62
1 1/16
LCAX250-58F-X
5/8
1.28
1.03
0.17
2.45
Yellow
P62
16
62
1 1/16
LCAX250-34F-X
3/4
1.28
1.03
0.17
2.64
Yellow
P62
16
62
1 1/16
LCAX300-38F-6
300 kcmil
313.1 kcmil
—
3/8
1.39
1.19
0.18
2.37
Red
P71
18
71H
1 1/4
LCAX300-12F-6
1/2
1.39
1.19
0.18
2.37
Red
P71
18
71H
1 1/4
LCAX300-58F-6
5/8
1.39
1.19
0.18
2.58
Red
P71
18
71H
1 1/4
LCAX350-56F-6
350 kcmil
373.7 kcmil
—
5/16
1.54
1.29
0.22
2.32
Blue
P76
19
76H
1 3/8
LCAX350-38F-6
3/8
1.54
1.29
0.22
2.32
Blue
P76
19
76H
1 3/8
LCAX350-12F-6
1/2
1.54
1.29
0.22
2.48
Blue
P76
19
76H
1 3/8
LCAX350-58F-6
5/8
1.54
1.29
0.22
2.69
Blue
P76
19
76H
1 3/8
LCAX450-12F-6
450 kcmil
444.4 kcmil
—
1/2
1.7
1.4
0.26
2.95
Brown
P87
20
87H
1 7/16
LCAX450-58F-6
5/8
1.7
1.4
0.26
3.08
Brown
P87
20
87H
1 7/16
LCAX500-56F-6
500 kcmil
535.3 kcmil
—
5/16
1.89
1.48
0.26
2.44
Pink
P99
L99
99H
1 9/16
LCAX500-38F-6
3/8
1.89
1.48
0.26
2.69
Pink
P99
L99
99H
1 9/16
LCAX500-12F-6
1/2
1.89
1.48
0.26
2.81
Pink
P99
L99
99H
1 9/16
LCAX500-58F-6
5/8
1.89
1.48
0.26
3.37
Pink
P99
L99
99H
1 9/16
LCAX650-56F-6
—
646.4 kcmil
—
5/16
1.95
1.45
0.3
2.5
Black
P106
24
106H
1 1/2
LCAX650-38F-6
3/8
1.95
1.45
0.3
2.5
Black
P106
24
106H
1 1/2
LCAX650-12F-6
1/2
1.95
1.45
0.3
2.86
Black
P106
24
106H
1 1/2
LCAX650-58F-6
5/8
1.95
1.45
0.3
3.42
Black
P106
24
106H
1 1/2
LCAX750-12F-3
—
777.7 kcmil
—
1/2
2.17
1.66
0.32
2.86
Yellow
P115
L115
115H
1 3/4
LCAX750-58F-3
5/8
2.17
1.66
0.32
3.67
Yellow
P115
L115
115H
1 3/4
Flex Conductor, One-Hole, Standard Barrel with Window, Narrow Tongue Lug
Type LCAXN
Part Number
Flex
Conductor Size
Figure
Dimensions(In.)
W
B
T
L
LCAXN750-12-3
—
777.7kcmil
—
1/2
1.5
1.66
0.33
3.94
Yellow
P115
L115
115H
1 3/4
Flex Conductor, One-Hole, Standard Barrel with Window, Flared NEBS Lug
Type LCAF
Part
Number
Flex Conductor Size
Class K and M
W
B
T
L
LCAF8-10-L
—
#8 AWG
#10
0.41
0.76
0.08
1.45
Red
P21
13/16
LCAF8-14-L
1/4
0.48
0.76
0.07
1.54
Red
P21
13/16
LCAF8-56-L
5/16
0.56
0.76
0.05
1.66
Red
P21
13/16
LCAF8-38-L
3/8
0.6
0.76
0.05
1.76
Red
P21
13/16
LCAF6-10-L
#6 AWG
#6 AWG
#10
0.45
0.81
0.09
1.52
Blue
P24
7/8
LCAF6-14-L
1/4
0.48
0.81
0.08
1.61
Blue
P24
7/8
LCAF6-56-L
5/16
0.56
0.81
0.07
1.73
Blue
P24
7/8
LCAF6-38-L
3/8
0.62
0.81
0.06
1.83
Blue
P24
7/8
LCAF4-10-L
#4 AWG
#4 AWG
#10
0.55
0.81
0.09
1.54
Gray
P29
7/8
LCAF4-14-L
1/4
0.55
0.81
0.09
1.63
Gray
P29
7/8
LCAF4-56-L
5/16
0.55
0.81
0.09
1.75
Gray
P29
7/8
LCAF4-38-L
3/8
0.62
0.81
0.07
1.85
Gray
P29
7/8
LCAF2-14-E
#2 AWG
#2 AWG
1/4
0.7
0.88
0.11
1.79
Brown
P33
15/16
LCAF2-56-E
5/16
0.7
0.88
0.11
1.92
Brown
P33
15/16
LCAF2-38-E
3/8
0.7
0.88
0.11
1.99
Brown
P33
15/16
LCAF2-12-E
1/2
0.79
0.88
0.09
2.23
Brown
P33
15/16
LCAF1-14-X
#1 AWG
#1 AWG
1/4
0.76
0.94
0.12
1.95
Pink
P42
1
LCAF1-56-X
5/16
0.76
0.94
0.12
2
Pink
P42
1
LCAF1-38-X
3/8
0.76
0.94
0.12
2.08
Pink
P42
1
LCAF1-12-X
1/2
0.8
0.94
0.12
2.31
Pink
P42
1
LCAF1/0-14-X
1/0 AWG
1/0 AWG
1/4
0.85
1.35
0.13
2.46
Black
P45
1 7/16
LCAF1/0-56-X
5/16
0.85
1.35
0.13
2.46
Black
P45
1 7/16
LCAF1/0-38-X
3/8
0.85
1.35
0.13
2.52
Black
P45
1 7/16
LCAF1/0-12-X
1/2
0.85
1.35
0.13
2.77
Black
P45
1 7/16
LCAF2/0-14-X
2/0 AWG
2/0 AWG
1/4
0.96
1.35
0.13
2.49
Orange
P50
1 7/16
LCAF2/0-56-X
5/16
0.96
1.35
0.13
2.49
Orange
P50
1 7/16
LCAF2/0-38-X
3/8
0.96
1.35
0.13
2.55
Orange
P50
1 7/16
LCAF2/0-12-X
1/2
0.96
1.35
0.13
2.8
Orange
P50
1 7/16
LCAF3/0-14-X
3/0 AWG
3/0 AWG
1/4
1.06
1.35
0.14
2.52
Purple
P54
1 7/16
LCAF3/0-56-X
5/16
1.06
1.35
0.14
2.53
Purple
P54
1 7/16
LCAF3/0-38-X
3/8
1.06
1.35
0.14
2.6
Purple
P54
1 7/16
LCAF3/0-12-X
1/2
1.06
1.35
0.14
2.83
Purple
P54
1 7/16
LCAF4/0-14-X
4/0 AWG
4/0 AWG
1/4
1.17
1.35
0.14
2.56
Yellow
P62
1 7/16
LCAF4/0-56-X
5/16
1.17
1.35
0.14
2.58
Yellow
P62
1 7/16
LCAF4/0-38-X
3/8
1.17
1.35
0.14
2.65
Yellow
P62
1 7/16
LCAF4/0-12-X
1/2
1.17
1.35
0.14
2.88
Yellow
P62
1 7/16
LCAF250-38-X
250 kcmil
262.6 kcmil
3/8
1.28
1.65
0.17
3.19
White
P66
1 3/4
LCAF250-12-X
1/2
1.28
1.65
0.17
3.3
White
P66
1 3/4
LCAF250-58-X
5/8
1.28
1.65
0.17
3.51
White
P66
1 3/4
LCAF250-78-X
7/8
1.28
1.65
0.17
3.95
White
P66
1 3/4
LCAF300-38-6
300 kcmil
313.1 kcmil
3/8
1.39
1.65
0.18
3.37
Red
P71
1 3/4
LCAF300-12-6
1/2
1.39
1.65
0.18
3.37
Red
P71
1 3/4
LCAF300-58-6
5/8
1.39
1.65
0.18
3.58
Red
P71
1 3/4
LCAF300-78-6
7/8
1.39
1.65
0.18
3.97
Red
P71
1 3/4
LCAF350-38-6
350 kcmil
373.7 kcmil
3/8
1.54
1.85
0.22
3.49
Blue
P76
1 15/16
LCAF350-12-6
1/2
1.54
1.85
0.22
3.65
Blue
P76
1 15/16
LCAF350-58-6
5/8
1.54
1.85
0.22
3.86
Blue
P76
1 15/16
LCAF350-34-6
3/4
1.54
1.85
0.22
4
Blue
P76
1 15/16
LCAF350-78-6
7/8
1.54
1.85
0.22
4.25
Blue
P76
1 15/16
LCAF350-1-6
1
1.54
1.85
0.22
4.37
Blue
P76
1 15/16
LCAF400-12-6
400 kcmil
444.4 kcmil
1/2
1.7
2.2
0.26
4.65
Brown
P87
2 1/4
LCAF400-58-6
5/8
1.7
2.2
0.26
4.65
Brown
P87
2 1/4
LCAF400-78-6
7/8
1.7
2.2
0.26
4.65
Brown
P87
2 1/4
LCAF500-12-6
500 kcmil
535.3 kcmil
1/2
1.89
2.28
0.26
4.99
Pink
P99
2 5/16
LCAF500-58-6
5/8
1.89
2.28
0.26
5.18
Pink
P99
2 5/16
LCAF600-12-6
—
646.4 kcmil
1/2
1.95
2.33
0.3
5.07
Black
P106
2 3/8
LCAF600-58-6
5/8
1.95
2.33
0.3
5.26
Black
P106
2 3/8
LCAF750-12-3
—
777.7 kcmil
1/2
2.17
2.38
0.32
5.21
Orange
P107
2 7/16
LCAF750-58-3
5/8
2.17
2.38
0.32
5.4
Orange
P107
2 7/16
Flex Conductor, One-Hole, Standard Barrel with Window, Flared NEBS Lug,45° Angle
Type LCAF-H
| Part Number | Flex Conductor Size |
Stud
Hole Size
(In.)
|
Figure Dimensions (In.) |
Panduit
Color
Code
|
Panduit
Die Index
No.‡
|
Wire Strip
Length
(In.)
|
||||
| Class K and M |
Diesel
Locomotive
|
W | B | T | L | |||||
| LCAF8-10H-L | — | #8 AWG | #10 | 0.41 | 0.76 | 0.08 | 1.26 | Red | P21 | 13/16 |
| LCAF8-14H-L | 1/4 | 0.48 | 0.76 | 0.07 | 1.35 | Red | P21 | 13/16 | ||
| LCAF8-56H-L | 5/16 | 0.56 | 0.76 | 0.05 | 1.46 | Red | P21 | 13/16 | ||
| LCAF8-38H-L | 3/8 | 0.6 | 0.76 | 0.05 | 1.55 | Red | P21 | 13/16 | ||
| LCAF6-10H-L | #6 AWG | #6 AWG | #10 | 0.45 | 0.81 | 0.09 | 1.31 | Blue | P24 | 7/8 |
| LCAF6-14H-L | 1/4 | 0.48 | 0.81 | 0.08 | 1.4 | Blue | P24 | 7/8 | ||
| LCAF6-56H-L | 5/16 | 0.56 | 0.81 | 0.07 | 1.51 | Blue | P24 | 7/8 | ||
| LCAF6-38H-L | 3/8 | 0.62 | 0.81 | 0.06 | 1.61 | Blue | P24 | 7/8 | ||
| LCAF4-10H-L | #4 AWG | #4 AWG | #10 | 0.55 | 0.81 | 0.09 | 1.34 | Gray | P29 | 7/8 |
| LCAF4-14H-L | 1/4 | 0.55 | 0.81 | 0.09 | 1.43 | Gray | P29 | 7/8 | ||
| LCAF4-56H-L | 5/16 | 0.55 | 0.81 | 0.09 | 1.55 | Gray | P29 | 7/8 | ||
| LCAF4-38H-L | 3/8 | 0.62 | 0.81 | 0.07 | 1.64 | Gray | P29 | 7/8 | ||
| LCAF2-14H-E | #2 AWG | #2 AWG | 1/4 | 0.7 | 0.88 | 0.11 | 1.52 | Brown | P33 | 15/16 |
| LCAF2-56H-E | 5/16 | 0.7 | 0.88 | 0.11 | 1.65 | Brown | P33 | 15/16 | ||
| LCAF2-38H-E | 3/8 | 0.7 | 0.88 | 0.11 | 1.72 | Brown | P33 | 15/16 | ||
| LCAF2-12H-E | 1/2 | 0.79 | 0.88 | 0.09 | 1.95 | Brown | P33 | 15/16 | ||
| LCAF1-14H-X | #1 AWG | #1 AWG | 1/4 | 0.76 | 0.94 | 0.12 | 1.65 | Pink | P42 | 1 |
| LCAF1-56H-X | 5/16 | 0.76 | 0.94 | 0.12 | 1.71 | Pink | P42 | 1 | ||
| LCAF1-38H-X | 3/8 | 0.76 | 0.94 | 0.12 | 1.78 | Pink | P42 | 1 | ||
| LCAF1-12H-X | 1/2 | 0.8 | 0.94 | 0.12 | 2.01 | Pink | P42 | 1 | ||
| LCAF1/0-14H-X | 1/0 AWG | 1/0 AWG | 1/4 | 0.85 | 1.35 | 0.13 | 2.06 | Black | P45 | 1 7/16 |
| LCAF1/0-56H-X | 5/16 | 0.85 | 1.35 | 0.13 | 2.06 | Black | P45 | 1 7/16 | ||
| LCAF1/0-38H-X | 3/8 | 0.85 | 1.35 | 0.13 | 2.12 | Black | P45 | 1 7/16 | ||
| LCAF1/0-12H-X | 1/2 | 0.85 | 1.35 | 0.13 | 2.37 | Black | P45 | 1 7/16 | ||
| LCAF2/0-14H-X | 2/0 AWG | 2/0 AWG | 1/4 | 0.96 | 1.35 | 0.13 | 2.08 | Orange | P50 | 1 7/16 |
| LCAF2/0-56H-X | 5/16 | 0.96 | 1.35 | 0.13 | 2.08 | Orange | P50 | 1 7/16 | ||
| LCAF2/0-38H-X | 3/8 | 0.96 | 1.35 | 0.13 | 2.14 | Orange | P50 | 1 7/16 | ||
| LCAF2/0-12H-X | 1/2 | 0.96 | 1.35 | 0.13 | 2.39 | Orange | P50 | 1 7/16 | ||
| LCAF3/0-14H-X | 3/0 AWG | 3/0 AWG | 1/4 | 1.06 | 1.35 | 0.14 | 2.11 | Purple | P54 | 1 7/16 |
| LCAF3/0-56H-X | 5/16 | 1.06 | 1.35 | 0.14 | 2.13 | Purple | P54 | 1 7/16 | ||
| LCAF3/0-38H-X | 3/8 | 1.06 | 1.35 | 0.14 | 2.2 | Purple | P54 | 1 7/16 | ||
| LCAF3/0-12H-X | 1/2 | 1.06 | 1.35 | 0.14 | 2.43 | Purple | P54 | 1 7/16 | ||
| LCAF4/0-14H-X | 4/0 AWG | 4/0 AWG | 1/4 | 1.17 | 1.35 | 0.14 | 2.16 | Yellow | P62 | 1 7/16 |
| LCAF4/0-56H-X | 5/16 | 1.17 | 1.35 | 0.14 | 2.17 | Yellow | P62 | 1 7/16 | ||
| LCAF4/0-38H-X | 3/8 | 1.17 | 1.35 | 0.14 | 2.24 | Yellow | P62 | 1 7/16 | ||
| LCAF4/0-12H-X | 1/2 | 1.17 | 1.35 | 0.14 | 2.47 | Yellow | P62 | 1 7/16 | ||
| LCAF250-38H-X | 250 kcmil | 262.6 kcmil | 3/8 | 1.28 | 1.65 | 0.17 | 3.19 | White | P66 | 1 3/4 |
| LCAF250-12H-X | 1/2 | 1.28 | 1.65 | 0.17 | 2.89 | White | P66 | 1 3/4 | ||
| LCAF250-58H-X | 5/8 | 1.28 | 1.65 | 0.17 | 3.1 | White | P66 | 1 3/4 | ||
| LCAF250-78H-X | 7/8 | 1.28 | 1.65 | 0.17 | 3.54 | White | P66 | 1 3/4 | ||
| LCAF300-38H-6 | 300 kcmil | 313.1 kcmil | 3/8 | 1.39 | 1.64 | 0.18 | 3 | Red | P71 | 1 3/4 |
| LCAF300-12H-6 | 1/2 | 1.39 | 1.64 | 0.18 | 3 | Red | P71 | 1 3/4 | ||
| LCAF300-58H-6 | 5/8 | 1.39 | 1.64 | 0.18 | 3.21 | Red | P71 | 1 3/4 | ||
| LCAF300-78H-6 | 7/8 | 1.39 | 1.64 | 0.18 | 3.6 | Red | P71 | 1 3/4 | ||
| LCAF350-38H-6 | 350 kcmil | 373.7 kcmil | 3/8 | 1.54 | 1.84 | 0.22 | 3.06 | Blue | P76 | 1 15/16 |
| LCAF350-12H-6 | 1/2 | 1.54 | 1.84 | 0.22 | 3.22 | Blue | P76 | 1 15/16 | ||
| LCAF350-58H-6 | 5/8 | 1.54 | 1.84 | 0.22 | 3.43 | Blue | P76 | 1 15/16 | ||
| LCAF350-34H-6 | 3/4 | 1.54 | 1.84 | 0.22 | 3.57 | Blue | P76 | 1 15/16 | ||
| LCAF350-78H-6 | 7/8 | 1.54 | 1.84 | 0.22 | 3.82 | Blue | P76 | 1 15/16 | ||
| LCAF350-1H-6 | 1 | 1.54 | 1.84 | 0.22 | 3.94 | Blue | P76 | 1 15/16 | ||
| LCAF400-12H-6 | 400 kcmil | 444.4 kcmil | 1/2 | 1.7 | 2.19 | 0.26 | 4.12 | Brown | P87 | 2 1/4 |
| LCAF400-58H-6 | 5/8 | 1.7 | 2.19 | 0.26 | 4.12 | Brown | P87 | 2 1/4 | ||
| LCAF400-78H-6 | 7/8 | 1.7 | 2.19 | 0.26 | 4.12 | Brown | P87 | 2 1/4 | ||
Flex Conductor, One-Hole, Standard Barrel with Window, Flared NEBS Lug,90° Angle
Type LCAF-F
Part
Number
Flex
Conductor Size
Figure
Dimensions(In.)
Class K and M
W
B
T
L
LCAF8-10F-L
—
#8 AWG
#10
0.41
0.76
0.08
0.93
Red
P21
13/16
LCAF8-14F-L
1/4
0.48
0.76
0.07
1.02
Red
P21
13/16
LCAF8-56F-L
5/16
0.56
0.76
0.05
1.14
Red
P21
13/16
LCAF8-38F-L
3/8
0.6
0.76
0.05
1.24
Red
P21
13/16
LCAF6-10F-L
#6 AWG
#6 AWG
#10
0.45
0.81
0.09
1.52
Blue
P24
7/8
LCAF6-14F-L
1/4
0.45
0.81
0.08
1.06
Blue
P24
7/8
LCAF6-56F-L
5/16
0.56
0.81
0.07
1.18
Blue
P24
7/8
LCAF6-38F-L
3/8
0.62
0.81
0.06
1.28
Blue
P24
7/8
LCAF4-10F-L
#4 AWG
#4 AWG
#10
0.55
0.81
0.09
1.07
Gray
P29
7/8
LCAF4-14F-L
1/4
0.55
0.81
0.09
1.16
Gray
P29
7/8
LCAF4-56F-L
5/16
0.55
0.81
0.09
1.28
Gray
P29
7/8
LCAF4-38F-L
3/8
0.62
0.81
0.07
1.38
Gray
P29
7/8
LCAF2-14F-E
#2 AWG
#2 AWG
1/4
0.7
0.88
0.11
1.35
Brown
P33
15/16
LCAF2-56F-E
5/16
0.7
0.88
0.11
1.48
Brown
P33
15/16
LCAF2-38F-E
3/8
0.7
0.88
0.11
1.55
Brown
P33
15/16
LCAF2-12F-E
1/2
0.79
0.88
0.09
1.79
Brown
P33
15/16
LCAF1-14F-X
#1 AWG
#1 AWG
1/4
0.76
0.94
0.12
1.49
Pink
P42
1
LCAF1-56F-X
5/16
0.76
0.94
0.12
1.54
Pink
P42
1
LCAF1-38F-X
3/8
0.76
0.94
0.12
1.62
Pink
P42
1
LCAF1-12F-X
1/2
0.8
0.94
0.12
1.85
Pink
P42
1
LCAF1/0-14F-X
1/0 AWG
1/0 AWG
1/4
0.85
1.35
0.13
1.64
Black
P45
1 7/16
LCAF1/0-56F-X
5/16
0.85
1.35
0.13
1.7
Black
P45
1 7/16
LCAF1/0-38F-X
3/8
0.85
1.35
0.13
1.7
Black
P45
1 7/16
LCAF1/0-12F-X
1/2
0.85
1.35
0.13
1.95
Black
P45
1 7/16
LCAF2/0-14F-X
2/0 AWG
2/0 AWG
1/4
0.96
1.35
0.13
1.71
Orange
P50
1 7/16
LCAF2/0-56F-X
5/16
0.96
1.35
0.13
1.71
Orange
P50
1 7/16
LCAF2/0-38F-X
3/8
0.96
1.35
0.13
1.77
Orange
P50
1 7/16
LCAF2/0-12F-X
1/2
0.96
1.35
0.13
2.02
Orange
P50
1 7/16
LCAF3/0-14F-X
3/0 AWG
3/0 AWG
1/4
1.06
1.35
0.14
1.81
Purple
P54
1 7/16
LCAF3/0-56F-X
5/16
1.06
1.35
0.14
1.82
Purple
P54
1 7/16
LCAF3/0-38F-X
3/8
1.06
1.35
0.14
1.89
Purple
P54
1 7/16
LCAF3/0-12F-X
1/2
1.06
1.35
0.14
2.12
Purple
P54
1 7/16
LCAF4/0-14F-X
4/0 AWG
4/0 AWG
1/4
1.17
1.35
0.14
1.88
Yellow
P62
1 7/16
LCAF4/0-56F-X
5/16
1.17
1.35
0.14
1.9
Yellow
P62
1 7/16
LCAF4/0-38F-X
3/8
1.17
1.35
0.14
1.97
Yellow
P62
1 7/16
LCAF4/0-12F-X
1/2
1.17
1.35
0.14
2.2
Yellow
P62
1 7/16
LCAF250-38F-X
250 kcmil
262.6 kcmil
3/8
1.28
1.65
0.17
2.21
White
P66
1 3/4
LCAF250-12F-X
1/2
1.28
1.65
0.17
2.32
White
P66
1 3/4
LCAF250-58F-X
5/8
1.28
1.65
0.17
2.53
White
P66
1 3/4
LCAF250-78F-X
7/8
1.28
1.65
0.17
2.97
White
P66
1 3/4
LCAF300-38F-6
300 kcmil
313.1 kcmil
3/8
1.39
1.65
0.18
2.44
Red
P71
1 3/4
LCAF300-12F-6
1/2
1.39
1.65
0.18
2.44
Red
P71
1 3/4
LCAF300-58F-6
5/8
1.39
1.65
0.18
2.65
Red
P71
1 3/4
LCAF300-78F-6
7/8
1.39
1.65
0.18
3.04
Red
P71
1 3/4
LCAF350-38F-6
350 kcmil
373.7 kcmil
3/8
1.54
1.85
0.22
2.4
Blue
P76
1 15/16
LCAF350-12F-6
1/2
1.54
1.85
0.22
2.4
Blue
P76
1 15/16
LCAF350-58F-6
5/8
1.54
1.85
0.22
2.77
Blue
P76
1 15/16
LCAF350-34F-6
3/4
1.54
1.85
0.22
2.91
Blue
P76
1 15/16
LCAF350-78F-6
7/8
1.54
1.85
0.22
3.16
Blue
P76
1 15/16
LCAF350-1F-6
1
1.54
1.85
0.22
3.28
Blue
P76
1 15/16
LCAF400-12F-6
400 kcmil
444.4 kcmil
1/2
1.7
2.2
0.26
3.28
Brown
P87
2 1/4
LCAF400-58F-6
5/8
1.7
2.20
0.26
3.28
Brown
P87
2 1/4
LCAF400-78F-6
7/8
1.7
2.20
0.26
3.28
Brown
P87
2 1/4
Flex Conductor, One-Hole, Long Barrel with Window Lug
Type LCBX
| Part Number | Flex Conductor Size |
Code
Conductor
Size
|
Stud Hole
Size (In.)
|
Figure Dimensions (In.) |
Panduit
Color
Code
|
Panduit
Die Index
No.‡
|
Burndy
Die Index
No.‡
|
T&B
Die Index
No.‡
|
Wire Strip
Length
(In.)
|
||||
|
Class
G, H, I, K, M
|
Diesel
Locomotive
|
W | B | T | L | ||||||||
| LCBX8-10-L | #8 AWG | #8 AWG | #8 AWG | #10 | 0.41 | 0.7 | 0.08 | 1.39 | Red | P21 | 49 | 21 | 3/4 |
| LCBX8-14-L | 1/4 | 0.48 | 0.7 | 0.07 | 1.48 | Red | P21 | 49 | 21 | 3/4 | |||
| LCBX8-38-L | 3/8 | 0.6 | 0.7 | 0.05 | 1.7 | Red | P21 | 49 | 21 | 3/4 | |||
| LCBX6-14-L | #6 AWG | #6 AWG | #6 AWG | 1/4 | 0.48 | 1.07 | 0.08 | 1.86 | Blue | P24 | 7 | 24 | 1 1/8 |
| LCBX6-38-L | 3/8 | 0.62 | 1.07 | 0.06 | 2.08 | Blue | P24 | 7 | 24 | 1 1/8 | |||
| LCBX4-14-L | #4 AWG |
#5,#4,#3
AWG
|
#4 AWG | 1/4 | 0.55 | 1.05 | 0.09 | 1.87 | Gray | P29 | 8 | 29 | 1 1/8 |
| LCBX4-38-L | 3/8 | 0.62 | 1.05 | 0.07 | 2.09 | Gray | P29 | 8 | 29 | 1 1/8 | |||
| LCBX2-14-E* | #2 AWG | #2 AWG | #2 AWG | 1/4 | 0.7 | 1.36 | 0.11 | 2.26 | Brown | P33 | 10 | 33 | 1 7/16 |
| LCBX2-38-E* | 3/8 | 0.7 | 1.36 | 0.11 | 2.46 | Brown | P33 | 10 | 33 | 1 7/16 | |||
| LCBX2-12-E* | 1/2 | 0.75 | 1.36 | 0.09 | 2.7 | Brown | P33 | 10 | 33 | 1 7/16 | |||
| LCBX1-14-X | #1 AWG | #1 AWG | #1 AWG | 1/4 | 0.76 | 1.44 | 0.12 | 2.44 | Green | P37 | 11 | 37 | 1 1/2 |
| LCBX1-56-X | 5/16 | 0.76 | 1.44 | 0.12 | 2.5 | Green | P37 | 11 | 37 | 1 1/2 | |||
| LCBX1-38-X | 3/8 | 0.76 | 1.44 | 0.12 | 2.57 | Green | P37 | 11 | 37 | 1 1/2 | |||
| LCBX1/0-14-X | 1/0 AWG | 1/0 AWG | 1/0 AWG | 1/4 | 0.85 | 1.5 | 0.13 | 2.61 | Pink | P42 | 12 | 42 | 1 9/16 |
| LCBX1/0-38-X | 3/8 | 0.85 | 1.5 | 0.13 | 2.67 | Pink | P42 | 12 | 42 | 1 9/16 | |||
| LCBX1/0-12-X | 1/2 | 0.85 | 1.5 | 0.13 | 2.92 | Pink | P42 | 12 | 42 | 1 9/16 | |||
| LCBX2/0-14-X | 2/0 AWG | 2/0 AWG | 2/0 AWG | 1/4 | 0.96 | 1.5 | 0.13 | 2.64 | Black | P45 | 13 | 45 | 1 9/16 |
| LCBX2/0-38-X | 3/8 | 0.96 | 1.5 | 0.13 | 2.7 | Black | P45 | 13 | 45 | 1 9/16 | |||
| LCBX2/0-12-X | 1/2 | 0.96 | 1.5 | 0.13 | 2.96 | Black | P45 | 13 | 45 | 1 9/16 | |||
| LCBX3/0-38-X | 3/0 AWG | 3/0 AWG | 3/0 AWG | 3/8 | 1.06 | 1.56 | 0.14 | 2.81 | Orange | P50 | 14 | 50 | 1 5/8 |
| LCBX4/0-38-X | 4/0 AWG | 4/0 AWG | 4/0 AWG | 3/8 | 1.19 | 2.24 | 0.16 | 3.74 | Purple | P54 | 15 | 54 | 2 5/16 |
| LCBX4/0-12-X | 1/2 | 1.19 | 2.24 | 0.16 | 3.85 | Purple | P54 | 15 | 54 | 2 5/16 | |||
| LCBX250-38-X | 250 kcmil | 262.6 kcmil | — | 3/8 | 1.28 | 2.24 | 0.17 | 3.78 | Yellow | P62 | 16 | 62 | 2 5/16 |
| LCBX250-12-X | 1/2 | 1.28 | 2.24 | 0.17 | 3.89 | Yellow | P62 | 16 | 62 | 2 5/16 | |||
| LCBX250-58-X | 5/8 | 1.28 | 2.24 | 0.17 | 4.1 | Yellow | P62 | 16 | 62 | 2 5/16 | |||
| LCBX300-38-6 | 300 kcmil | 313.1 kcmil | — | 3/8 | 1.39 | 2.3 | 0.18 | 4.02 | Red | P71 | 18 | 71H | 2 3/8 |
| LCBX350-38-6 | 350 kcmil | 373.7 kcmil | — | 3/8 | 1.54 | 2.5 | 0.22 | 4.14 | Blue | P76 | 19 | 76H | 2 9/16 |
| LCBX350-12-6 | 1/2 | 1.54 | 2.5 | 0.22 | 4.3 | Blue | P76 | 19 | 76H | 2 9/16 | |||
| LCBX450-38-6 | 450 kcmil | 444.4 kcmil | — | 3/8 | 1.7 | 2.69 | 0.26 | 5.14 | Brown | P87 | 20 | 87H | 2 3/4 |
| LCBX500-38-6 | 500 kcmil | 535.3 kcmil | — | 3/8 | 1.89 | 2.88 | 0.26 | 4.84 | Pink | P99 | L99 | 99H | 2 15/16 |
| LCBX500-12-6 | 1/2 | 1.89 | 2.88 | 0.26 | 5.03 | Pink | P99 | L99 | 99H | 2 15/16 | |||
Flex Conductor, One-Hole, Long Barrel with Window Lug, 45° Angle
Type LCBX-H
| Part Number | Flex Conductor Size |
Code
Conductor
Size
|
Stud Hole
Size (In.)
|
Figure Dimensions(In.) |
Panduit
Color
Code
|
Panduit
Die Index
No.‡
|
Burndy
Die Index
No.‡
|
T&B
Die Index
No.‡
|
Wire Strip
Length
(In.)
|
||||
|
Class
G, H, I, K, M
|
Diesel
Locomotive
|
W | B | T | L | ||||||||
| LCBX8-10H-L | #8 AWG | #8 AWG | #8 AWG | #10 | 0.41 | 0.7 | 0.08 | 1.2 | Red | P21 | 49 | 21 | 3/4 |
| LCBX8-14H-L | 1/4 | 0.48 | 0.7 | 0.07 | 1.28 | Red | P21 | 49 | 21 | 3/4 | |||
| LCBX8-38H-L | 3/8 | 0.6 | 0.7 | 0.05 | 1.49 | Red | P21 | 49 | 21 | 3/4 | |||
| LCBX6-14H-L | #6 AWG | #6 AWG | #6 AWG | 1/4 | 0.48 | 1.07 | 0.08 | 1.56 | Blue | P24 | 7 | 24 | 1 1/8 |
| LCBX6-38H-L | 3/8 | 0.62 | 1.07 | 0.06 | 1.77 | Blue | P24 | 7 | 24 | 1 1/8 | |||
| LCBX4-14H-L | #4 AWG |
#5,#4,#3
AWG
|
#4 AWG | 1/4 | 0.55 | 1.05 | 0.09 | 1.57 | Gray | P29 | 8 | 29 | 1 1/8 |
| LCBX4-38H-L | 3/8 | 0.62 | 1.05 | 0.07 | 1.78 | Gray | P29 | 8 | 29 | 1 1/8 | |||
| LCBX2-14H-E* | #2 AWG | #2 AWG | #2 AWG | 1/4 | 0.7 | 1.36 | 0.11 | 1.83 | Brown | P33 | 10 | 33 | 1 7/16 |
| LCBX2-38H-E* | 3/8 | 0.7 | 1.36 | 0.11 | 2.03 | Brown | P33 | 10 | 33 | 1 7/16 | |||
| LCBX2-12H-E* | 1/2 | 0.75 | 1.36 | 0.09 | 2.26 | Brown | P33 | 10 | 33 | 1 7/16 | |||
| LCBX1-14H-X | #1 AWG | #1 AWG | #1 AWG | 1/4 | 0.76 | 1.44 | 0.12 | 1.98 | Green | P37 | 11 | 37 | 1 1/2 |
| LCBX1-56H-X | 5/16 | 0.76 | 1.44 | 0.12 | 2.04 | Green | P37 | 11 | 37 | 1 1/2 | |||
| LCBX1-38H-X | 3/8 | 0.76 | 1.44 | 0.12 | 2.11 | Green | P37 | 11 | 37 | 1 1/2 | |||
| LCBX1/0-14H-X | 1/0 AWG | 1/0 AWG | 1/0 AWG | 1/4 | 0.85 | 1.5 | 0.13 | 2.13 | Pink | P42 | 12 | 42 | 1 9/16 |
| LCBX1/0-38H-X | 3/8 | 0.85 | 1.5 | 0.13 | 2.2 | Pink | P42 | 12 | 42 | 1 9/16 | |||
| LCBX1/0-12H-X | 1/2 | 0.85 | 1.5 | 0.13 | 2.45 | Pink | P42 | 12 | 42 | 1 9/16 | |||
| LCBX2/0-14H-X | 2/0 AWG | 2/0 AWG | 2/0 AWG | 1/4 | 0.96 | 1.5 | 0.13 | 2.16 | Black | P45 | 13 | 45 | 1 9/16 |
| LCBX2/0-38H-X | 3/8 | 0.96 | 1.5 | 0.13 | 2.22 | Black | P45 | 13 | 45 | 1 9/16 | |||
| LCBX2/0-12H-X | 1/2 | 0.96 | 1.5 | 0.13 | 2.47 | Black | P45 | 13 | 45 | 1 9/16 | |||
| LCBX3/0-38H-X | 3/0 AWG | 3/0 AWG | 3/0 AWG | 3/8 | 1.06 | 1.56 | 0.14 | 2.31 | Orange | P50 | 14 | 50 | 1 5/8 |
| LCBX4/0-38H-X | 4/0 AWG | 4/0 AWG | 4/0 AWG | 3/8 | 1.19 | 2.24 | 0.16 | 3.12 | Purple | P54 | 15 | 54 | 2 5/16 |
| LCBX4/0-12H-X | 1/2 | 1.19 | 2.24 | 0.16 | 3.23 | Purple | P54 | 15 | 54 | 2 5/16 | |||
| LCBX250-38H-X | 250 kcmil | 262.6 kcmil | — | 3/8 | 1.28 | 2.24 | 0.17 | 3.15 | Yellow | P62 | 16 | 62 | 2 5/16 |
| LCBX300-38H-6 | 300 kcmil | 313.1 kcmil | — | 3/8 | 1.39 | 2.3 | 0.18 | 3.42 | Red | P71 | 18 | 71H | 2 3/8 |
| LCBX300-12H-6 | 1/2 | 1.39 | 2.3 | 0.18 | 3.69 | Red | P71 | 18 | 71H | 2 3/8 | |||
| LCBX350-38H-6 | 350 kcmil | 373.7 kcmil | — | 3/8 | 1.54 | 2.5 | 0.22 | 3.48 | Blue | P76 | 19 | 76H | 2 9/16 |
| LCBX350-12H-6 | 1/2 | 1.54 | 2.5 | 0.22 | 3.64 | Blue | P76 | 19 | 76H | 2 9/16 | |||
| LCBX450-38H-6 | 450 kcmil | 444.4 kcmil | — | 3/8 | 1.7 | 2.69 | 0.26 | 4.42 | Brown | P87 | 20 | 87H | 2 3/4 |
| LCBX500-38H-6 | 500 kcmil | 535.3 kcmil | — | 3/8 | 1.89 | 2.88 | 0.26 | 4.08 | Pink | P99 | L99 | 99H | 2 15/16 |
| LCBX500-12H-6 | 1/2 | 1.89 | 2.88 | 0.26 | 4.27 | Pink | P99 | L99 | 99H | 2 15/16 | |||
Flex Conductor, One-Hole, Long Barrel with Window Lug, 90° Angle
Type LCBX-F
| Part Number | Flex Conductor Size |
Code
Conductor
Size
|
Stud Hole
Size(In.)
|
Figure Dimensions(In.) |
Panduit
Color
Code
|
Panduit
Die Index
No.‡
|
Burndy
Die Index
No.‡
|
T&B
Die Index
No.‡
|
Wire Strip
Length
(In.)
|
||||
|
Class
G, H, I, K, M
|
Diesel
Locomotive
|
W | B | T | L | ||||||||
| LCBX8-10F-L | #8 AWG | #8 AWG | #8 AWG | #10 | 0.41 | 0.7 | 0.08 | 0.9 | Red | P21 | 49 | 21 | 3/4 |
| LCBX8-14F-L | 1/4 | 0.48 | 0.7 | 0.07 | 0.99 | Red | P21 | 49 | 21 | 3/4 | |||
| LCBX8-38F-L | 3/8 | 0.6 | 0.7 | 0.05 | 1.21 | Red | P21 | 49 | 21 | 3/4 | |||
| LCBX6-14F-L | #6 AWG | #6 AWG | #6 AWG | 1/4 | 0.48 | 1.07 | 0.08 | 1.03 | Blue | P24 | 7 | 24 | 1 1/8 |
| LCBX6-38F-L | 3/8 | 0.62 | 1.07 | 0.06 | 1.25 | Blue | P24 | 7 | 24 | 1 1/8 | |||
| LCBX4-14F-L | #4 AWG |
#5,#4,#3
AWG
|
#4 AWG | 1/4 | 0.55 | 1.05 | 0.09 | 1.12 | Gray | P29 | 8 | 29 | 1 1/8 |
| LCBX4-38F-L | 3/8 | 0.62 | 1.05 | 0.07 | 1.34 | Gray | P29 | 8 | 29 | 1 1/8 | |||
| LCBX2-14F-E* | #2 AWG | #2 AWG | #2 AWG | 1/4 | 0.7 | 1.36 | 0.11 | 1.31 | Brown | P33 | 10 | 33 | 1 7/16 |
| LCBX2-38F-E* | 3/8 | 0.7 | 1.36 | 0.11 | 1.51 | Brown | P33 | 10 | 33 | 1 7/16 | |||
| LCBX2-12F-E* | 1/2 | 0.75 | 1.36 | 0.09 | 1.75 | Brown | P33 | 10 | 33 | 1 7/16 | |||
| LCBX1-14F-X | #1 AWG | #1 AWG | #1 AWG | 1/4 | 0.76 | 1.44 | 0.12 | 1.45 | Green | P37 | 11 | 37 | 1 1/2 |
| LCBX1-56F-X | 5/16 | 0.76 | 1.44 | 0.12 | 1.51 | Green | P37 | 11 | 37 | 1 1/2 | |||
| LCBX1-38F-X | 3/8 | 0.76 | 1.44 | 0.12 | 1.58 | Green | P37 | 11 | 37 | 1 1/2 | |||
| LCBX1/0-14F-X | 1/0 AWG | 1/0 AWG | 1/0 AWG | 1/4 | 0.85 | 1.5 | 0.13 | 1.61 | Pink | P42 | 12 | 42 | 1 9/16 |
| LCBX1/0-38F-X | 3/8 | 0.85 | 1.5 | 0.13 | 1.66 | Pink | P42 | 12 | 42 | 1 9/16 | |||
| LCBX1/0-12F-X | 1/2 | 0.85 | 1.5 | 0.13 | 1.91 | Pink | P42 | 12 | 42 | 1 9/16 | |||
| LCBX2/0-14F-X | 2/0 AWG | 2/0 AWG | 2/0 AWG | 1/4 | 0.96 | 1.5 | 0.13 | 1.67 | Black | P45 | 13 | 45 | 1 9/16 |
| LCBX2/0-38F-X | 3/8 | 0.96 | 1.5 | 0.13 | 1.73 | Black | P45 | 13 | 45 | 1 9/16 | |||
| LCBX2/0-12F-X | 1/2 | 0.96 | 1.5 | 0.13 | 1.98 | Black | P45 | 13 | 45 | 1 9/16 | |||
| LCBX3/0-38F-X | 3/0 AWG | 3/0 AWG | 3/0 AWG | 3/8 | 1.06 | 1.56 | 0.14 | 1.84 | Orange | P50 | 14 | 50 | 1 5/8 |
| LCBX4/0-38F-X | 4/0 AWG | 4/0 AWG | 4/0 AWG | 3/8 | 1.19 | 2.24 | 0.16 | 2.07 | Purple | P54 | 15 | 54 | 2 5/16 |
| LCBX4/0-12F-X | 1/2 | 1.19 | 2.24 | 0.16 | 2.18 | Purple | P54 | 15 | 54 | 2 5/16 | |||
| LCBX250-38F-X | 250 kcmil | 262.6 kcmil | — | 3/8 | 1.28 | 2.24 | 0.17 | 2.13 | Yellow | P62 | 16 | 62 | 2 5/16 |
| LCBX300-38F-6 | 300 kcmil | 313.1 kcmil | — | 3/8 | 1.39 | 2.3 | 0.18 | 2.37 | Red | P71 | 18 | 71H | 2 3/8 |
| LCBX300-12F-6 | 1/2 | 1.39 | 2.3 | 0.18 | 2.37 | Red | P71 | 18 | 71H | 2 3/8 | |||
| LCBX350-38F-6 | 350 kcmil | 373.7 kcmil | — | 3/8 | 1.54 | 2.5 | 0.22 | 2.32 | Blue | P76 | 19 | 76H | 2 9/16 |
| LCBX350-12F-6 | 1/2 | 1.54 | 2.5 | 0.22 | 2.48 | Blue | P76 | 19 | 76H | 2 9/16 | |||
| LCBX450-38F-6 | 450 kcmil | 444.4 kcmil | — | 3/8 | 1.7 | 2.69 | 0.26 | 3.14 | Brown | P87 | 20 | 87H | 2 3/4 |
| LCBX500-38F-6 | 500 kcmil | 535.3 kcmil | — | 3/8 | 1.89 | 2.88 | 0.26 | 2.62 | Pink | P99 | L99 | 99H | 2 15/16 |
| LCBX500-12F-6 | 1/2 | 1.89 | 2.88 | 0.26 | 2.81 | Pink | P99 | L99 | 99H | 2 15/16 | |||
相关产品
双孔连接器
对接连接器
Blank Tongue Lugs
铜制机械接头
aluminum compression lugs and splices
