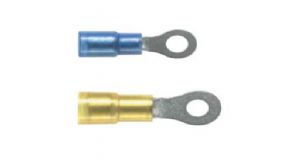

PANDUIT 加宽尼龙绝缘环形端子
概述
• Expanded wire entry designed to accommodate wire with a larger insulation thickness
• Ring tongue design assures a secure connection in high vibration applications
• Metal insulation grip sleeve crimps to wire insulation, providingprotection to the crimp joint during high vibration applications
• Internal barrel serrations assure good wire contact and maximum tensile strength
• UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C)
• UL and CSA rated up to 600 V per UL 486A/B
Recommended Installation Tool
CT-100A‡,CT-600-A‡,CT-1550‡,CT-1551‡,CT-2500‡
| Part | Wire Range | Color Code | Stock Thickness(In.) | Max. Ins. | Stud Size | L | W | C |
| PN14-6RX-C | 16-14 AWG | Blue | 0.03 | 0.200 | #6 | 0.93 | 0.31 | 0.25 |
| PN14-8RX-C | 16-14 AWG | Blue | 0.03 | 0.200 | #8 | 0.93 | 0.31 | 0.25 |
| PN14-10RX-C | 16-14 AWG | Blue | 0.03 | 0.200 | #10 | 0.93 | 0.31 | 0.25 |
| PN14-14RX-L | 16-14 AWG | Blue | 0.03 | 0.200 | 1/4" | 1.13 | 0.46 | 0.38 |
| PN10-6RX-L | 12-10 AWG | Yellow | 0.04 | 0.265 | #6 | 1.13 | 0.37 | 0.33 |
| PN10-8RX-L | 12-10 AWG | Yellow | 0.04 | 0.265 | #8 | 1.13 | 0.37 | 0.33 |
| PN10-10RX-L | 12-10 AWG | Yellow | 0.04 | 0.265 | #10 | 1.13 | 0.37 | 0.33 |
| PN10-14RX-L | 12-10 AWG | Yellow | 0.04 | 0.265 | 1/4" | 1.27 | 0.52 | 0.42 |
| PN10-56RX-L | 12-10 AWG | Yellow | 0.04 | 0.265 | 5/16" | 1.27 | 0.52 | 0.42 |
| PN10-38RX-L | 12-10 AWG | Yellow | 0.04 | 0.265 | 3/8" | 1.35 | 0.58 | 0.46 |
