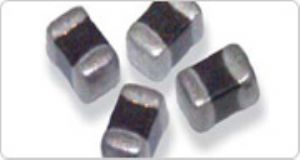

TE connectivity 铁氧体磁珠
概述
Type BMB-B Series
These beads are designed for high speed applications. The BMB-B Series will minimise the attenuation of the signal wave form due to its sharp impedance characteristics.This series is offered in 04:02, 06:03 and 08:05 package sizes.
Key Features
Effective EMI Protection
Wide Frequency Characteristics
High Soldering Heat Resistance
Various Package Sizes Available
Suited to a Variety of Applications
Type BMB-R Series
The BMB R Series has been designed for low speed applications and specifically for use in Digital Sound circuitry and similar to prevent ringing. These chip devices have been designed to generate high impedances at low frequencies.
The R series is offered in two sizes 06:03 and 08:05
Key Features
High Impedance at Lower Frequency
Prevents Signal Ringing
Wide Frequency Characteristics
Suited to a Variety of Applications
Type BMB-L Series
The L series exhibits a low DC resistance across a wide range of impedance with a higher current capability than the A series.These are suitable for use on signal delay lines handing larger current and are available in 06:03 and 08:05 packages according to impedance requirements.
Key Features
Low DC Resistance
High Current Capability
0603 and 0805 Package Sizes
Suited to Signal Delay Line Applications
Designed for Telecommunications
Type BMB-A Series
The BMB A Series of beads cover a wide range of impedance characteristics. The chip beads have a monolithic organic material construction that minimizes the effect of electromagnetic interference. These are high loss types for general use. This series is offered in 04:02, 06:03 and 08:05 package sizes.
Key Features
Effective EMI Protection
Wide Frequency Characteristics
High Soldering Heat Resistance
Various Package Sizes Available
Suited to a Variety of Applications
Type BMB-P Series
The P Series of multilayer beads is suitable for use in high current circuits due to its low dc resistance. It can match power lines to a maximum of 6 amps. The P series is available in 06:03 and 08:05 package sizes.
Key Features
Effective EMI Protection
Low DC Resistance
High Current Handling
Multiple Size Packages
Inorganic Material Construction
Suited to a Noise Filtering Applications
Designed for use in Modems etc.
| 序号 | 部件 | TE 内部编号 | 描述 | 阻抗 | DC电阻 | 最大电流 | 产品系列 | 应用 | 封装形式 | 封装，尺寸 |
| 1 | BMB1J0070BN3JIT | 1624116-3 | BMB-B 0603 70R | 70 Ω | .4 Ω | 200 mA | BMB-B | 高频 | 603 | 1.6 x .8 |
| 2 | BMB1J0120BN3JIT | 1624116-4 | BMB-B 0603 120R | 120 Ω | .4 Ω | 200 mA | BMB-B | 高频 | 603 | 1.6 x .8 |
| 3 | BMB1J0120RS2 | 1624116-5 | BMB-R 0603 120R | 120 Ω | .4 Ω | 200 mA | BMB-R | 低频 | 603 | 1.6 x .8 |
| 4 | BMB1J0240RS2 | 1624116-7 | BMB-R 0603 240R | 240 Ω | .4 Ω | 200 mA | BMB-R | 低频 | 603 | 1.6 x .8 |
| 5 | BMB1J0300BN3JIT | 1624116-8 | BMB-B 0603 300R | 300 Ω | .5 Ω | 100 mA | BMB-B | 高频 | 603 | 1.6 x .8 |
| 6 | BMB1J0300LN2 | 1624116-9 | BMB-L 0603 300R | 300 Ω | .25 Ω | 500 mA | BMB-L | 信号线 | 603 | 1.6 x .8 |
| 7 | BMB1J0420BN3JIT | 1-1624116-0 | BMB-B 0603 420R | 420 Ω | .5 Ω | 100 mA | BMB-B | 高频 | 603 | 1.6 x .8 |
| 8 | BMB1J0600BN3JIT | 1-1624116-2 | BMB-B 0603 600R | 600 Ω | .6 Ω | 100 mA | BMB-B | 高频 | 603 | 1.6 x .8 |
| 9 | BMB1J0600RS2 | 1-1624116-3 | BMB-R 0603 600R | 600 Ω | .8 Ω | 200 mA | BMB-R | 低频 | 603 | 1.6 x .8 |
| 10 | BMB1J1000AN2 | 1-1624116-6 | BMB-A 0603 1K0 | 1000 Ω | 1 Ω | 100 mA | BMB-A | 通用 | 603 | 1.6 x .8 |
| 11 | BMB1J1000LN2 | 1-1624116-4 | BMB-L 0603 1K | 1000 Ω | 1 Ω | 300 mA | BMB-L | 信号线 | 603 | 1.6 x .8 |
| 12 | BMB2A0056BN3 | 1624117-2 | BMB-B 0805 56R | 56 Ω | .3 Ω | 300 mA | BMB-B | 高频 | 805 | 2.0 x 1.25 |
| 13 | BMB2A0120BN3 | 1624117-6 | BMB-B 0805 120R | 120 Ω | .4 Ω | 300 mA | BMB-B | 高频 | 805 | 2.0 x 1.25 |
| 14 | BMB2A0120RS2 | 1624117-7 | BMB-R 0805 120R | 120 Ω | .3 Ω | 300 mA | BMB-R | 低频 | 805 | 2.0 x 1.25 |
| 15 | BMB2A0150AN1 | 1624117-8 | BMB-A 0805 150R | 150 Ω | .3 Ω | 300 mA | BMB-A | 通用 | 805 | 2.0 x 1.25 |
| 16 | BMB2A0150PN2 | 2-1624117-8 | BMB-P 0805 150R | 150 Ω | .04 Ω | 3000 mA | BMB-P | 强电流触点 | 805 | 2.0 x 1.25 |
| 17 | BMB2A0200BN3 | 1624117-9 | BMB-B 0805 200R | 200 Ω | .5 Ω | 200 mA | BMB-B | 高频 | 805 | 2.0 x 1.25 |
| 18 | BMB2A0300BN3 | 1-1624117-2 | BMB-B 0805 300R | 300 Ω | .5 Ω | 200 mA | BMB-B | 高频 | 805 | 2.0 x 1.25 |
| 19 | BMB2A0430RS2 | 1-1624117-4 | BMB-R 0805 430R | 430 Ω | .5 Ω | 200 mA | BMB-R | 低频 | 805 | 2.0 x 1.25 |
| 20 | BMB2A0470LN2 | 2-1624117-2 | BMB-L 0805 470R | 470 Ω | .2 Ω | 500 mA | BMB-L | 信号线 | 805 | 2.0 x 1.25 |
| 21 | BMB2A0060LN2 | 1624117-3 | BMB-L 0805 60R | 60 Ω | .05 Ω | 850 mA | BMB-L | 信号线 | 805 | 2.0 x 1.25 |
| 22 | BMB2A0120AN1 | 1624117-4 | BMB-A 0805 120R N1 | 120 Ω | .3 Ω | 300 mA | BMB-A | 通用 | 805 | 2.0 x 1.25 |
| 23 | BMB2A0120AN4 | 1624117-5 | BMB-A 0805 120R N4 | 150 Ω | .3 Ω | 300 mA | BMB-A | 通用 | 805 | 2.0 x 1.25 |
| 24 | BMB2A0220AN4 | 1-1624117-0 | BMB-A 0805 220R | 220 Ω | .5 Ω | 250 mA | BMB-A | 通用 | 805 | 2.0 x 1.25 |
| 25 | BMB2A0300AN1 | 1-1624117-1 | BMB-A 0805 300R | 300 Ω | .5 Ω | 250 mA | BMB-A | 通用 | 805 | 2.0 x 1.25 |
| 26 | BMB2A0300LN2 | 1-1624117-3 | BMB-L 0805 300R | 300 Ω | .15 Ω | 600 mA | BMB-L | 信号线 | 805 | 2.0 x 1.25 |
| 27 | BMB2A0600BN3 | 1-1624117-6 | BMB-B 0805 600R | 600 Ω | .6 Ω | 200 mA | BMB-B | 高频 | 805 | 2.0 x 1.25 |
| 28 | BMB2A0600RS2 | 1-1624117-7 | BMB-R 0805 600R | 600 Ω | .5 Ω | 200 mA | BMB-R | 低频 | 805 | 2.0 x 1.25 |
| 29 | BMB2A1000BN3 | 1-1624117-9 | BMB-B 0805 1K | 1000 Ω | .8 Ω | 200 mA | BMB-B | 高频 | 805 | 2.0 x 1.25 |
| 30 | BMB2A1000LN2 | 2-1624117-0 | BMB-L 0805 1K | 1000 Ω | .3 Ω | 350 mA | BMB-L | 信号线 | 805 | 2.0 x 1.25 |
| 31 | BMB1J0200BN3JIT | 1624116-6 | BMB-B 0603 200R | 200 Ω | .5 Ω | 200 mA | BMB-B | 高频 | 603 | 1.6 x .8 |
| 32 | BMB2A0120AN2 | 3-1624117-1 | BMB-A 0805 120R N2 | 120 Ω | .3 Ω | 300 mA | BMB-A | 通用 | 805 | 2.0 x 1.25 |
| 33 | BMB2A0600AN1 | 1-1624117-5 | BMB-A 0805 600R | 600 Ω | .6 Ω | 200 mA | BMB-A | 通用 | 805 | 2.0 x 1.25 |
| 34 | BMB2A0750BN3 | 1-1624117-8 | BMB-B 0805 750R | 750 Ω | .7 Ω | 200 mA | BMB-B | 高频 | 805 | 2.0 x 1.25 |
