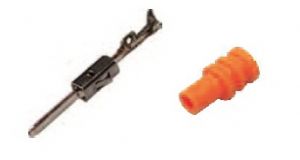

DELPHI TTS 1.5
概述
目标市场及应用
| For gap size DSQ 1.5 x 0.6 | ||||||
| Part number | Cable range [mm2] | Material | Plating | Version | Tang | |
| TTS 1.5 M | 13733481 | 0.13 | CuFe | Sn | unsealed | 2 |
| TTS 1.5 M | 15396711 | 0.22-0.35 | CuFe | Sn | unsealed | 2 |
| TTS 1.5 M | 15396712 | 0.5-0.75 | CuFe | Sn | unsealed | 2 |
| TTS 1.5 M | 15482337 | 1-1.5 | CuFe | Sn | unsealed | 2 |
| TTS 1.5 M | 15396713 | 2x0.35/2x0.5 | CuFe | Sn | unsealed | 2 |
| TTS 1.5 M | 15482338 | 0.22-0.35 | CuFe | Au | unsealed | 2 |
| TTS 1.5 M | 15482339 | 0.5-0.75 | CuFe | Au | unsealed | 2 |
| TTS 1.5 M | 15482340 | 1-1.5 | CuFe | Au | unsealed | 2 |
| TTS 1.5 M | 15482341 | 2x0.35/2x0.5 | CuFe | Au | unsealed | 2 |
| TTS 1.5 M | 15482323 | 0.22-0.35 | CuFe | Sn | sealed | 2 |
| TTS 1.5 M | 15482324 | 0.5-0.75 | CuFe | Sn | sealed | 2 |
| TTS 1.5 M | 15482325 | 1-1.5 | CuFe | Sn | sealed | 2 |
| TTS 1.5 M | 15482326 | 0.22-0.35 | CuFe | Au | sealed | 2 |
| TTS 1.5 M | 15482327 | 0.5-0.75 | CuFe | Au | sealed | 2 |
| TTS 1.5 M | 15482328 | 1-1.5 | CuFe | Au | sealed | 2 |
|
Cavity Ø 3.6 mm and Ø 4.0 mm Selected Delphi sealing products for TTS 1.5 |
||||||
| Possible cavity Ø | Loose part | Cable diameter（mm） | Material | Color | %Oil | |
| Cable Seal | 3.6 | 15327913 | 1.2-1.6 | LSR | red | 2 |
| Cable Seal | 3.6 | 15327918 | 1.2-2 | LSR | grey | 2 |
| Cable Seal | 3.6 | 15339412 | 1.9-2.1 | LSR | yellow | 2 |
| Plug | 3.6 | 12198198 | - | LSR | white | 2 |
| Cable Seal | 4 | 15344938 | 1.2-1.6 | LSR | blue | 2 |
| Cable Seal | 4 | 15339560 | 1.7-2.1 | LSR | red | 2 |
| Cable Seal | 4 | 10720807 | 2.2 | LSR | yellow | 2 |
| Plug | 4 | 10720811 | - | LSR | green | 2 |
