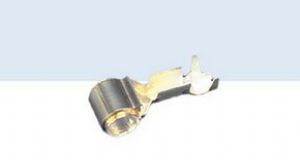

BOSCH Sleeve Contact 4.0
概述
Features
- Contact for the Glow Plug Connector
Product information
| part designation (long form) | terminal |
| part number | 1 928 498 243 |
| offer drawing | 1 928 A00 216 |
| technical customer documentation | 1 928 A00 71T |
| assembly instruction | 1 928 A00 75M |
目标市场及应用
Technical Features
| Wire cross-sections | 1.5...2.5 mm² |
| Temperature range | -40...+140 °C (Ag) |
| Nominal voltage | 50 mV ... 42 V (DC) |
| Current rating | max. 25 A (Ag) |
Technical information
| packing unit | 5100 pc. |
| minimum order quantity | 5100 pc. |
| time of delivery | on request |
| terminal type | Sleeve contact |
| vibration strength | 30 g |
| temperature range, from | -40 °C |
| temperature range, till | +140 °C |
| terminal surface | silver-plated |
| wire cross section | 1.5 - 2.5 mm² |
| line voltage from | 50 mV (DC) |
| line voltage to | 42 V (DC) |
| current-carrying capacity | max. 25 A (silver-plated) |
