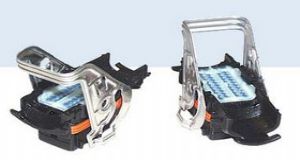

BOSCH 1928403311
概述
Product information
| part designation (long form) | wiring harness connector 38-way |
| part number | 1 928 403 311 |
| offer drawing (assembly) | A 928 000 218 |
| offer drawing (part) | D 928 001 02A |
| technical customer documentation | Y 280 K02 046 |
| assembly instruction | Y 928 F00 053 |
| additional assembly instruction | Y 928 F00 057 |
| final check instruction | Y 280 M02 046 |
Technical information
| packing unit | 315 pc. |
| minimum order quantity | 3150 pc. |
| time of delivery | on request |
| number of positions | 38 |
| colour | black |
| code | 8 |
| cable exit direction (KR) | left |
| secondary locking | none |
| terminal type | BMK 0,6 |
| type of seal (cable) | silicone gel-seal |
| type of locking mechanism (connector) | with a metal lever |
| vibration strength | 20 g |
| length | 64.9 mm |
| width | 31.9 mm |
| height | 39.2 mm |
| temperature range, min. | -40 °C |
| temperature range, max. | 130 °C |
| raster unit | 2.5 mm |
| row distance | 4 mm |
| scope of application | engine attachment |
| degree of protection | IP 54K;69K |
