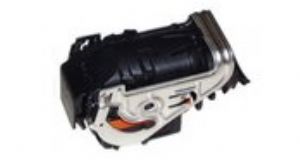

BOSCH 38-way
概述
Features
- sealed plug connection
- for limited space
- usable up to 130 °C
- silicone gel-seal
- for high vibration stress
Accesories
- cover
- secondary locking pin
- cable tie
- transport protection
- cap
Technical Features
| Vibration resistance | 20 g |
| Temperature range | -40...+130 °C |
| Degree of protection | IP 54K, 69K |
| Connection cross-sections | 0.5....0.75 mm² |
| Usable terminals | BMK 0.6 |
| Raster unit/pin | 2.5 mm/0.64 mm |
1928300520
1928403304
1928403311
1928403316
1928403319
1928403820
1928403822
1928403928
1928403974
