BOSCH 1928403928
概述
Product information

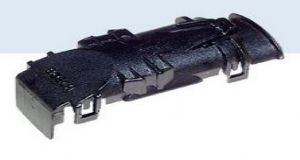

| part designation (long form) | wiring harness connector 38-way |
| part number | 1 928 403 928 |
| offer drawing (assembly) | A 928 000 458 |
| offer drawing (part) | C 928 002 60A |
| technical customer documentation | 1 928 A00 13T |
| assembly instruction | Y 928 F00 053 |
| additional assembly instruction | Y 928 F00 057 |
Technical information
| packing unit | 1000 pc. |
| minimum order quantity | 3000 pc. |
| time of delivery | on request |
| number of positions | 38 |
| colour | black |
| cable exit direction (KR) | left/right |
| secondary locking | none |
| type of seal (cable) | silicon gel-seal |
| type of locking mechanism (connector) | by a metal lever |
| vibration strength | 20 g |
| length | 57.7 mm |
| width | 24.5 mm |
| height | 16.3 mm |
| temperature range, min. | -40 °C |
| temperature range, max. | 130 °C |
| raster unit | 2.5 mm |
| row distance | 0.64 mm |
| scope of application | engine attachment |
| degree of protection | IP45K, IP69K |
