PANDUIT Edge clip

概述

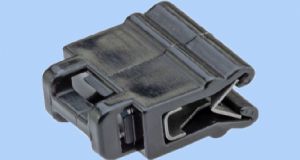

Edge Clip Cable Tie Mounts

New edge clip cable tie mounts from Panduit help secure wire and cable bundles with versatile mounting to edges. Panduit heavy-duty cable ties and mounts are made of rugged, highly durable materials; ideal for automobiles, trains, heavy equipment, trucks, and solar applications.


Part Number
Saddle Fixation
(for anchoring
cable tie)
Flange Thickness Bundle Orientation Style
Cable Tie
and/or
Compatible Cross Section
CME12-M300 Edge-fixed (E) .7mm - 3mm (12)
Parallel (A)
or Perpendicular (B)
Mount only M, I, S
CME24-M300 Edge-fixed (E) 3mm - 6mm (24)
CMS12-M300 Side-fixed (S) .7mm - 3mm (12)
CMS24-M300 Side-fixed (S) 3mm - 6mm (24)
CMEA12-2S-D300* Edge-fixed (E) .7mm - 3mm (12) Parallel (A) Cable Tie Assembly PLT2S-300
CMEA24-2S-D300* Edge-fixed (E) 3mm - 6mm (24)
CMSA12-2S-D300* Side-fixed (S) .7mm - 3mm (12)
CMSA24-2S-D300* Side-fixed (S) 3mm - 6mm (24)
CMEB12-2S-D300* Edge-fixed (E) .7mm - 3mm (12) Perpendicular (B) Cable Tie Assembly PLT2S-300
CMEB24-2S-D300* Edge-fixed (E) 3mm - 6mm (24)
CMSB12-2S-D300* Side-fixed (S) .7mm - 3mm (12)
CMSB24-2S-D300* Side-fixed (S) 3mm - 6mm (24)
CMEA12-B2S-D300 Edge-fixed (E) .7mm - 3mm (12) Parallel (A) Cable Tie Assembly BT2S-300
CMEA24-B2S-D300 Edge-fixed (E) 3mm - 6mm (24)
CMSA12-B2S-D300 Side-fixed (S) .7mm - 3mm (12)
CMSA24-B2S-D300 Side-fixed (S) 3mm - 6mm (24)
CMEB12-B2S-D300 Edge-fixed (E) .7mm - 3mm (12) Perpendicular (B) Cable Tie Assembly BT2S-300
CMEB24-B2S-D300 Edge-fixed (E) 3mm - 6mm (24)
CMSB12-B2S-D300 Side-fixed (S) .7mm - 3mm (12)
CMSB24-B2S-D300 Side-fixed (S) 3mm - 6mm (24)
* Also available in C-packs (-C300)
