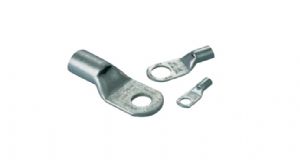

PANDUIT 管状环形裸端
概述
• Seamless tubular barrel provides a consistent high performance quality crimp• Round double thick tongue for reliable power applications
• Barrel of terminal internally beveled to provide quick and easy wire insertion
• Inspection window allows visual inspection of proper wire insertion
• Maximum recommended operating temperature 302°F (150°C)
• UL and CSA rated up to 2000 V per UL 486A – 486B
| Part | Wire Range | Stock Thickness(In.) | Stud Size | L | W | C | Recommended Installation Tool |
| S8-10R-Q | 8 AWG | #10 | 0.41 | 1.1 | 0.4 | 0.08 |
CT-1700
CT-720
CT-930
CT-930CH
CT-940CH
CT-2001
CT-2002
CT-2931
CT-2940
|
| S8-14R-Q | 8 AWG | 1/4" | 0.48 | 1.2 | 0.4 | 0.07 | |
| S8-56R-Q | 8 AWG | 5/16" | 0.6 | 1.3 | 0.4 | 0.05 | |
| S8-38R-Q | 8 AWG | 3/8" | 0.6 | 1.4 | 0.4 | 0.05 | |
| S6-10R-E | 6 AWG | #10 | 0.45 | 1.2 | 0.48 | 0.09 | |
| S6-14R-E | 6 AWG | 1/4" | 0.48 | 1.3 | 0.48 | 0.08 | |
| S6-56R-E | 6 AWG | 5/16" | 0.56 | 1.4 | 0.48 | 0.07 | |
| S6-38R-E | 6 AWG | 3/8" | 0.62 | 1.5 | 0.48 | 0.06 | |
| S4-10R-E | 4 AWG | #10 | 0.55 | 1.2 | 0.48 | 0.09 | |
| S4-14R-E | 4 AWG | 1/4" | 0.55 | 1.3 | 0.48 | 0.09 | |
| S4-56R-E | 4 AWG | 5/16" | 0.55 | 1.4 | 0.48 | 0.09 | |
| S4-38R-E | 4 AWG | 3/8" | 0.62 | 1.5 | 0.48 | 0.07 | |
| S2-10R-X | 1-2 AWG | #10 | 0.7 | 1.6 | 0.59 | 0.11 | |
| S2-14R-X | 1-2 AWG | 1/4" | 0.7 | 1.6 | 0.59 | 0.11 | |
| S2-56R-X | 1-2 AWG | 5/16" | 0.7 | 1.7 | 0.59 | 0.11 | |
| S2-38R-X | 1-2 AWG | 3/8" | 0.7 | 1.7 | 0.59 | 0.11 | |
| S2-12R-X | 1-2 AWG | 1/2" | 0.79 | 1.9 | 0.59 | 0.09 | |
| S1/0-14R-X | 1/0 AWG | 1/4" | 0.76 | 1.6 | 0.58 | 0.12 |
CT-720
CT-930
CT-930CH
CT-940CH
CT-2001
CT-2002
CT-980
CT-2980
CT-980CH
CT-2931
CT-2940
|
| S1/0-56R-X | 1/0 AWG | 5/16" | 0.76 | 1.7 | 0.58 | 0.12 | |
| S1/0-38R-X | 1/0 AWG | 3/8" | 0.76 | 1.7 | 0.58 | 0.12 | |
| S1/0-12R-X | 1/0 AWG | 1/2" | 0.82 | 1.9 | 0.58 | 0.12 | |
| S2/0-14R-X | 2/0 AWG | 1/4" | 0.85 | 1.9 | 0.66 | 0.13 | |
| S2/0-56R-X | 2/0 AWG | 5/16" | 0.85 | 1.9 | 0.66 | 0.13 | |
| S2/0-38R-X | 2/0 AWG | 3/8" | 0.85 | 1.9 | 0.66 | 0.13 | |
| S2/0-76R-X | 2/0 AWG | 7/16" | 0.85 | 2.1 | 0.66 | 0.13 | |
| S2/0-12R-X | 2/0 AWG | 1/2" | 0.85 | 2.1 | 0.66 | 0.13 | |
| S3/0-14R-5 | 3/0 AWG | 1/4" | 0.96 | 2.1 | 0.83 | 0.13 | |
| S3/0-56R-5 | 3/0 AWG | 5/16" | 0.96 | 2.1 | 0.83 | 0.13 | |
| S3/0-38R-5 | 3/0 AWG | 3/8" | 0.96 | 2.1 | 0.83 | 0.13 | |
| S3/0-76R-5 | 3/0 AWG | 7/16" | 0.96 | 2.3 | 0.83 | 0.13 | |
| S3/0-12R-5 | 3/0 AWG | 1/2" | 0.96 | 2.3 | 0.83 | 0.13 | |
| S4/0-56R-5 | 4/0 AWG | 5/16" | 1.06 | 2.3 | 0.91 | 0.14 | |
| S4/0-38R-5 | 4/0 AWG | 3/8" | 1.06 | 2.3 | 0.91 | 0.14 | |
| S4/0-76R-5 | 4/0 AWG | 7/16" | 1.06 | 2.5 | 0.91 | 0.14 | |
| S4/0-12R-5 | 4/0 AWG | 1/2" | 1.06 | 2.5 | 0.91 | 0.14 | |
| S250-56R-5 | 250 kcmil | 5/16" | 1.17 | 2.5 | 1.01 | 0.14 | |
| S250-38R-5 | 250 kcmil | 3/8" | 1.17 | 2.5 | 1.01 | 0.14 | |
| S250-76R-5 | 250 kcmil | 7/16" | 1.17 | 2.6 | 1.01 | 0.14 | |
| S250-12R-5 | 250 kcmil | 1/2" | 1.17 | 2.6 | 1.01 | 0.14 |
