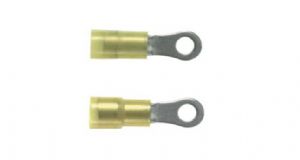

PANDUIT 重载尼龙绝缘环形端子
概述
• Manufactured from stock 56% thicker than a standard #16 – #14 AWG terminal for use in heavy-duty applications
• Insulation housing is marked with “HDR” to signify heavy-duty ring
• Ring tongue design assures a secure connection in high vibration applications
• Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
• Internal barrel serrations assure good wire contact and maximum tensile strength
• UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C)
• UL and CSA rated up to 600 V per UL 486A/B
Recommended Installation Tool
CT-1550‡,CT-1551‡,CT-2500‡
| Part | Wire Range | Color Code | Stock Thickness (In.) | Max. Ins. | Stud Size | L | W | C |
| PN12-8HDR-L | 16-12 AWG | Yellow | 0.05 | 0.225 | #8 | 1.06 | 0.31 | 0.35 |
| PN12-10HDR-L | 16-12 AWG | Yellow | 0.05 | 0.225 | #10 | 1.09 | 0.37 | 0.33 |
| PN12-14HDR-L | 16-12 AWG | Yellow | 0.05 | 0.225 | 1/4" | 1.24 | 0.52 | 0.42 |
| PN12-56HDR-L | 16-12 AWG | Yellow | 0.05 | 0.225 | 5/16" | 1.24 | 0.52 | 0.42 |
| PN12-38HDR-L | 16-12 AWG | Yellow | 0.05 | 0.225 | 3/8" | 1.3 | 0.58 | 0.46 |
